SPECIFICATIONS

Application: Desktop,Server,Workstation

Back I/O Ports: 1x RJ45

Battery Included: Yes

Brand Name: TFDP

Chipset: AMD B650

Chipset Manufacturer: AMD

Choice: yes

High-concerned chemical: None

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number of PCI: 0

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: AMD Ryzen 7000 Series-R5

RAID Supported: no

Socket Type: Socket AM5

Special Features: NONE

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR5

Usage Scenario: Enthusiast & Overclocking,Gaming,Office,Workstation

With CPU: No

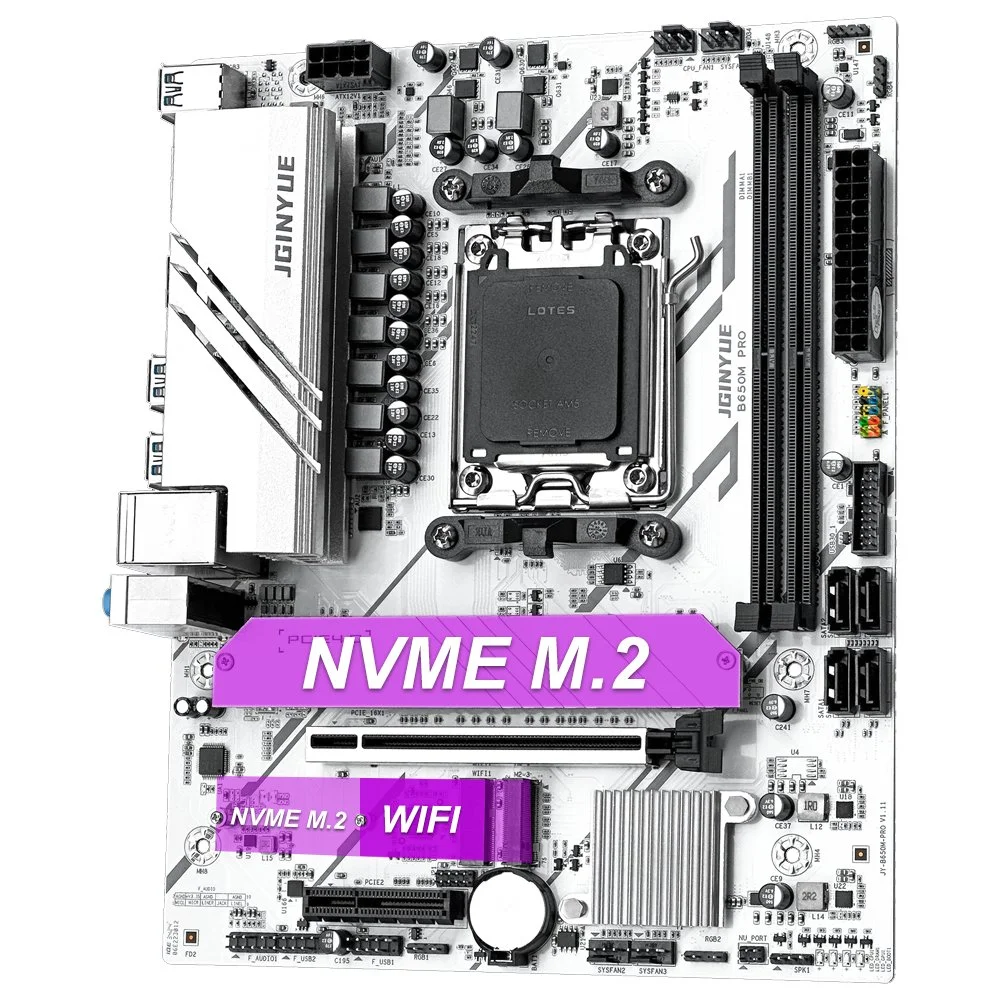

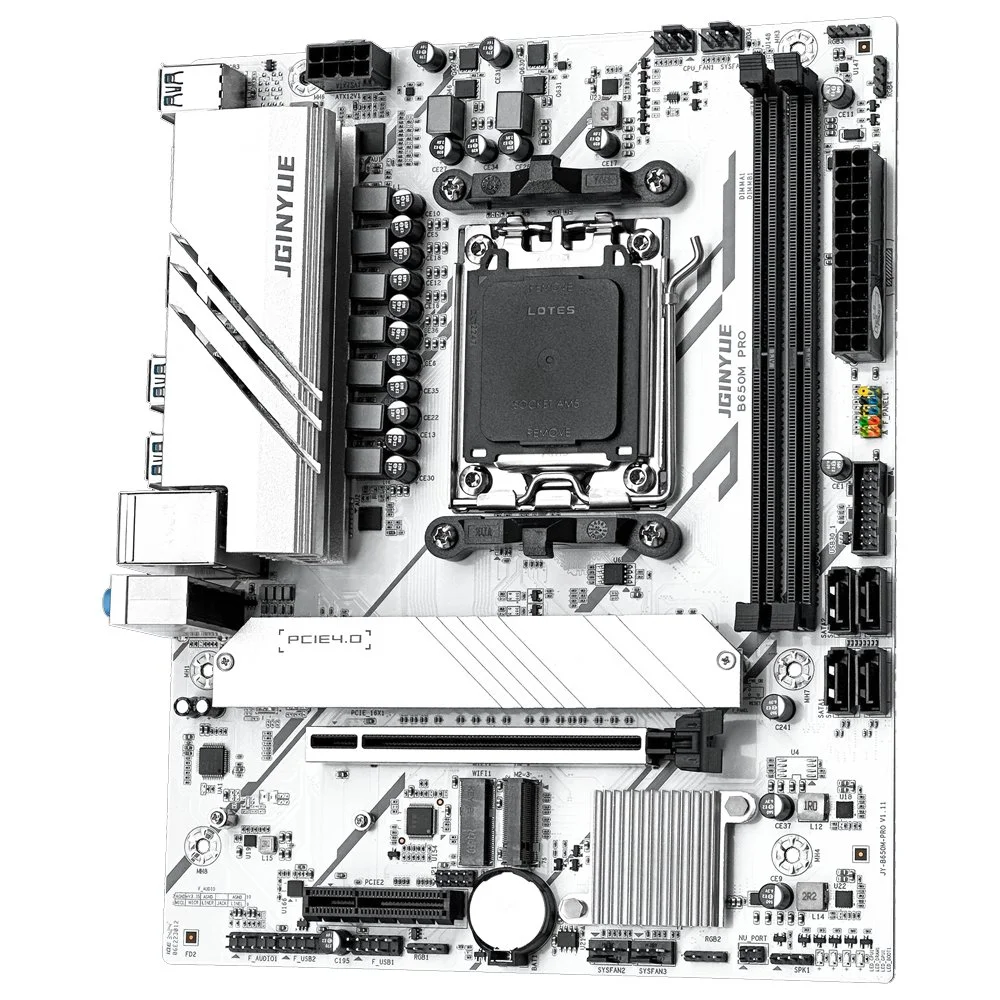

JGINYUE B650M PRO motherboard

This motherboard not including wifi card , if you want to buy wifi card,please choose this link :

https://www.aliexpress.com/item/1005010509868012.html?pdp_npi=4%40dis%21USD%21US%20%2446.19%21US%20%245.55%21%21%21324.38%2138.95%21%400baf710417655038754397590dd898%2112000052641270420%21sh%21US%212684234101%21X&spm=a2g0o.store_pc_home.allitems_choice_2009129029889.1005010509868012&gatewayAdapt=4itemAdapt

Supports AMD AM5 Ryzen 7000/8000/9000 series desktop processors
Supports dual channel 2 DDR5 memory slots with a maximum capacity of 64G
Memory frequency: 4800 to 6000+MHz
Display interface: 1 HDMI, 1 DP interface
4 SATA3.0, 2 M.2 NVME protocol 4.0 interfaces
1 PCI Express x16 slot and 1 PCI Express x4 slot

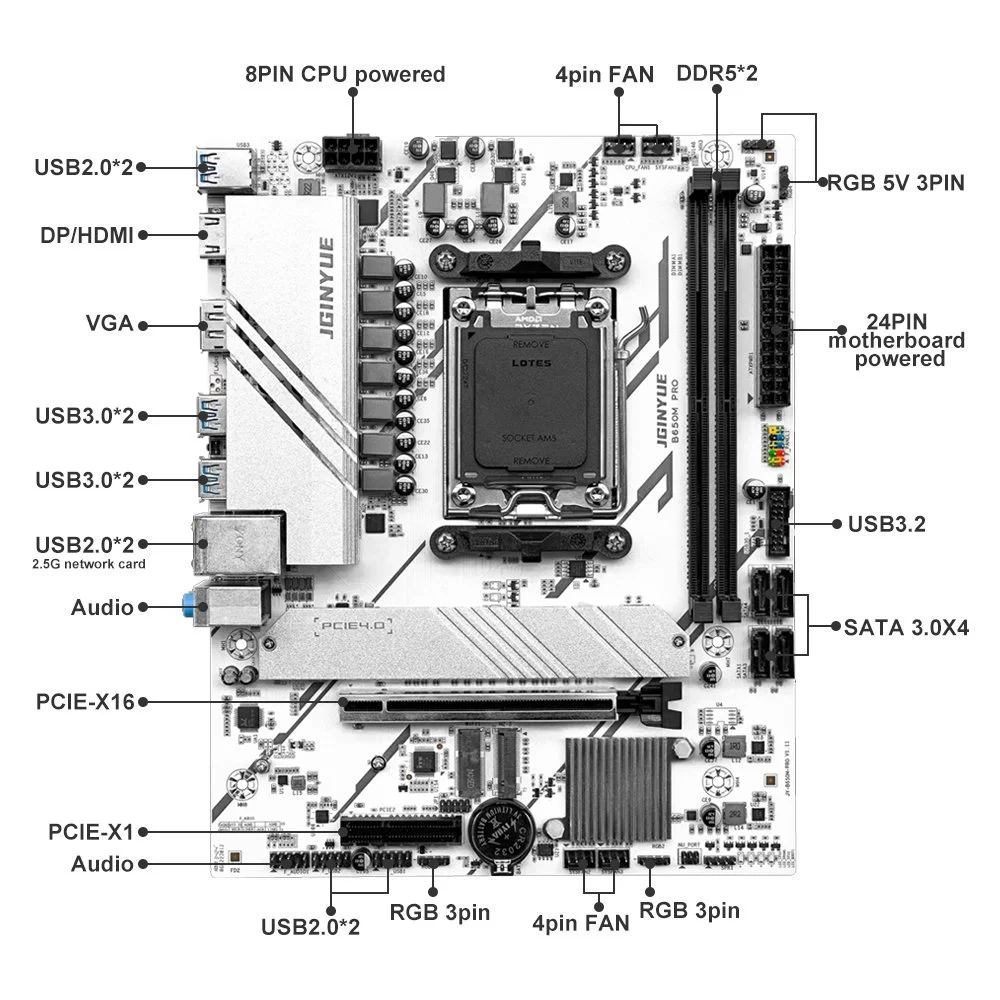

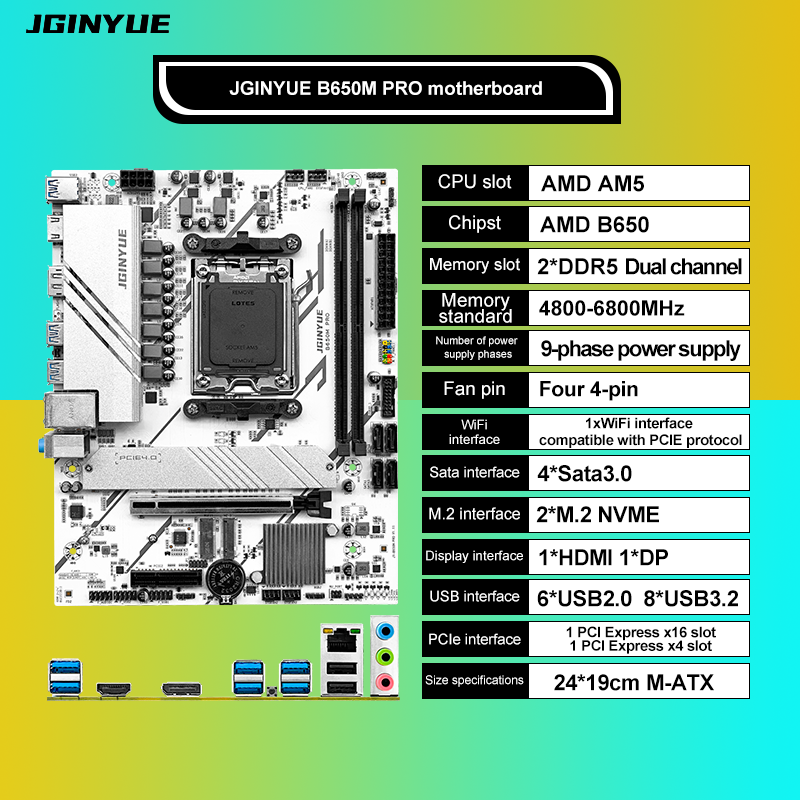

Motherboard model:B650M PRO

Chipset:AMD B650 chipset

CPU pins:Supports AMD AM5 Ryzen 7000/8000/9000 series desktop processors

Memory slot:2 DDR5 memory slots

Memory capacity:Maximum support for 64G

Memory frequency:Dual channel support 4800~6000/6400 (O.C)/6800 (O.C) MHz

Display interface:1 HDMI, 1 DP

Storage interface:4 SATA3.0 6Gbps; 2 M.2 nvme protocols 4.0

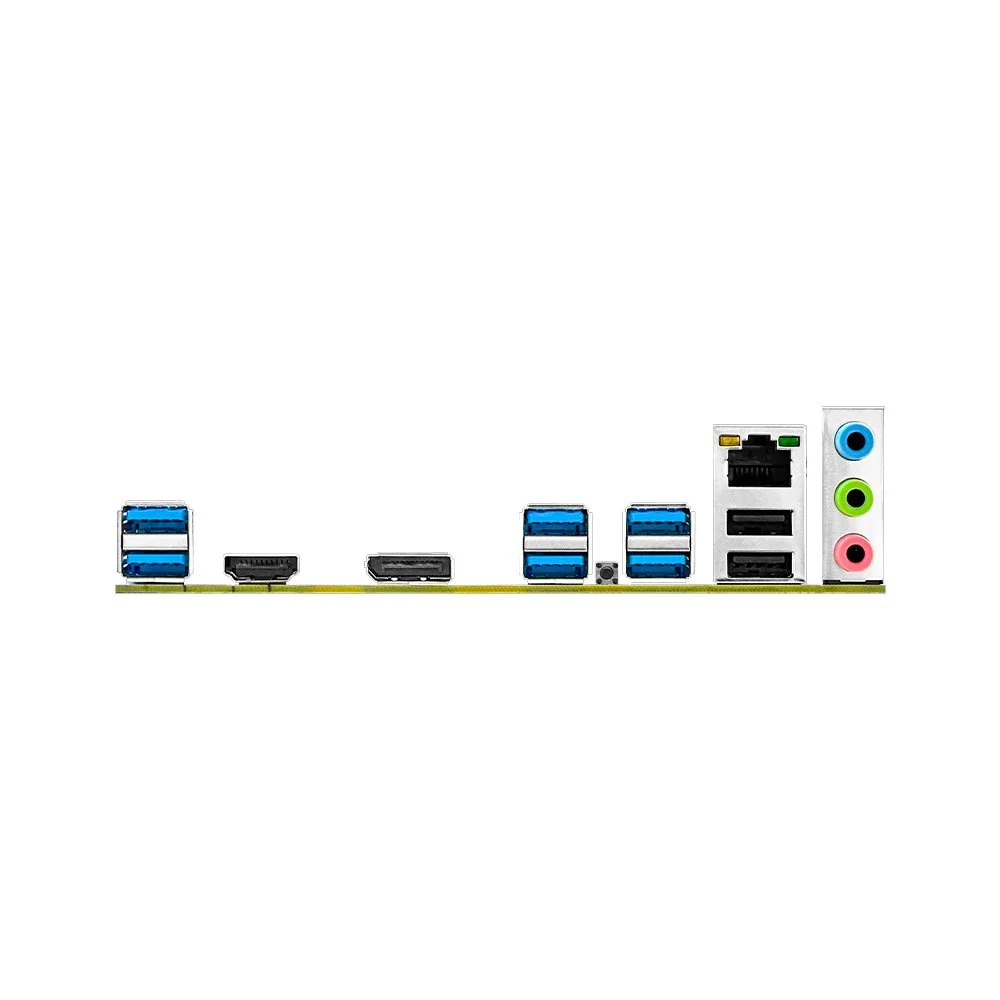

USB interface:Rear 6 USB 3.2 and 2 USB 2.0 ports; There is one USB 3.0 pin in front, which can accommodate two additional external USB 3.2 Geni interfaces, and two USB 2.0 pins, which can accommodate four additional external USB 2.0 interfaces

PCIe interface:1 PCI Express x16 slot, 1 PCI Express x4 slot

Wireless interface:1 WiFi interface (compatible with PCIe protocol)

Onboard sound card:Realtek ALC897

Onboard network card:Realtek 8111H

Power socket:Mainboard powered by 24 pins, CPU powered by 8 pins

Fan pin:4 pieces with 4 needles

RGB pin:4 RGB 5V 3-pin (MCU control chip)

Number of power supply phases:9-phase power supply

Size specifications:24cmx19cm M-ATX

support system:Windows10；Windows11

Other interfaces:1 one click BIOS clear button; 4 diagnostic lights; 1 SPK1 buzzer pin
