X99 Motherboard :

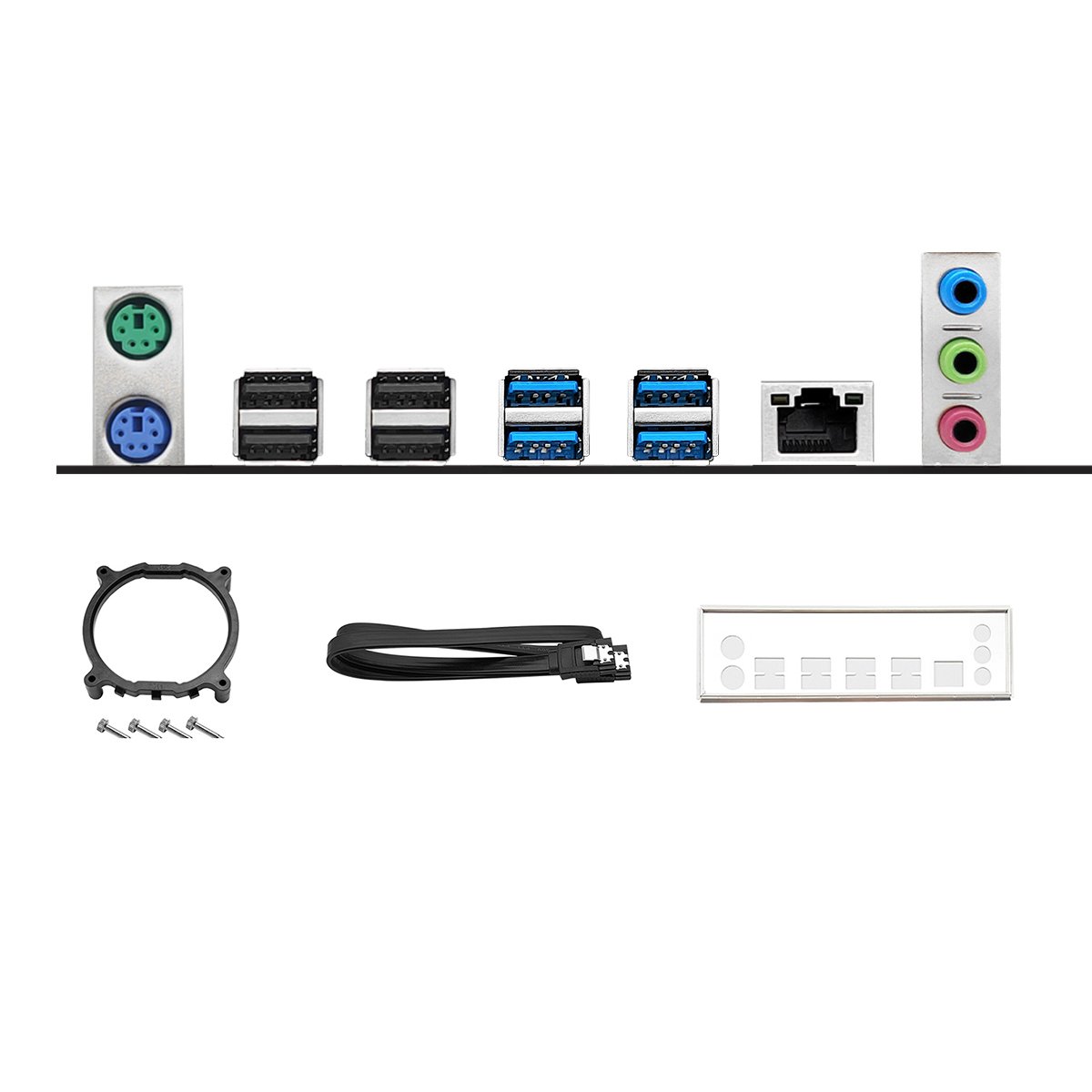

Package Contents:

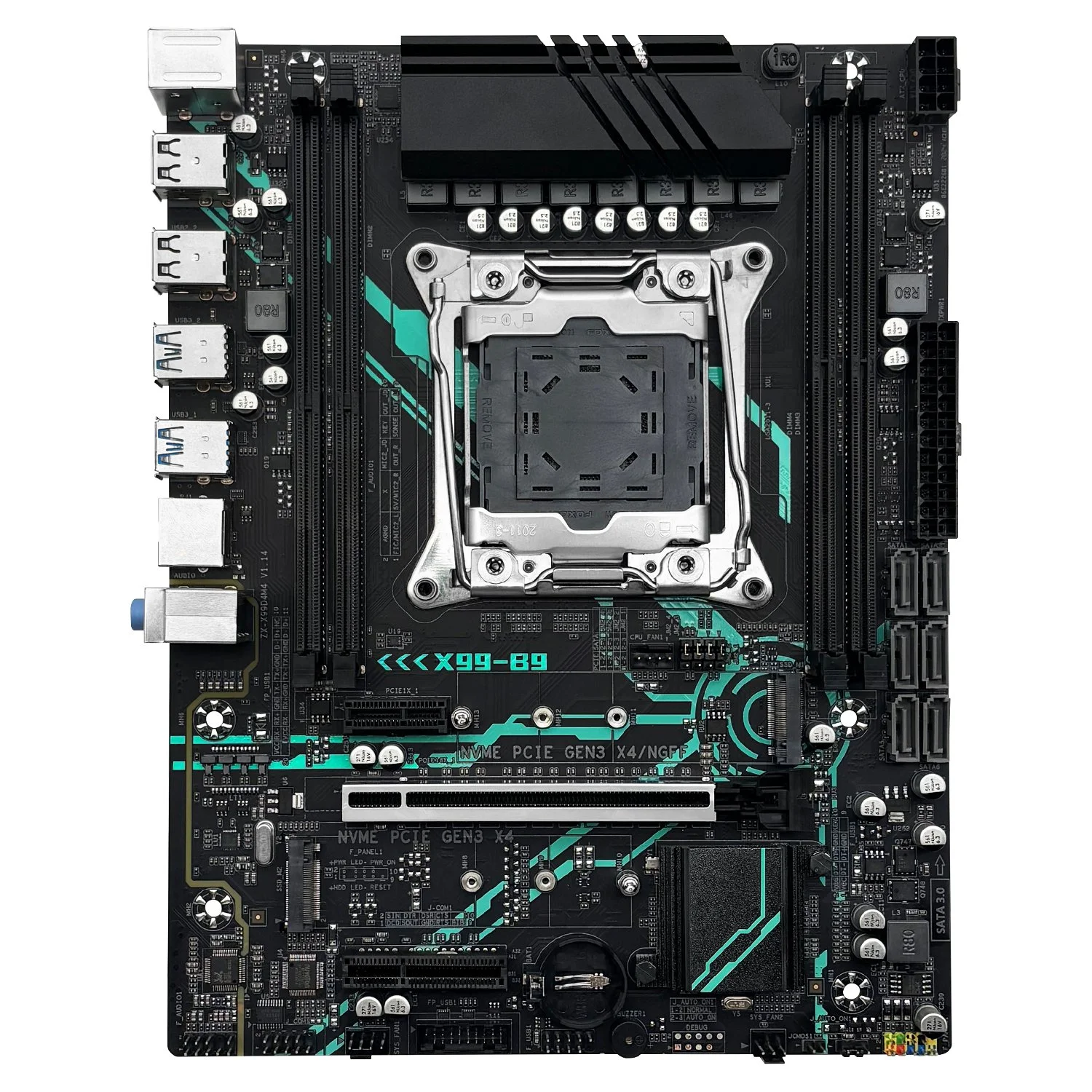

1 * X99 B9 Motherboard (X99 LGA 2011-3)
1 * CPU Heatsink Bracket
1 * I/O Shield
1 * SATA Data Cable

Specifications:

Brand: MACHINIST
Chipset: Intel C612
Compatible CPU Type: Supports Intel LGA 2011-3 socket, such as Intel Xeon E5 V3/V4, Intel Core i7, etc.
Memory Type: DDR4 DIMM, supports desktop DDR4 and server-grade DDR4 (ECC, RECC), quad-channel, maximum support of 32GB per slot, total memory capacity up to 128GB (32GB * 4), maximum frequency up to 2400 MHz (depending on CPU).

Expansion Slots: 1 PCI-E 3.0 x16 slot, 1 PCI-E 2.0 x4 slot, 1 PCI-E 2.0 x1 slot

Storage: Supports M.2 SSDs, 2.5/3.5-inch SATA SSDs, and HDDs.

Supports SATA (NGFF)/PCI-e (NVMe) protocol switching. Default mode is NVMe M.2, compliant with PCIe 3.0 x4 standard, with a maximum read/write speed of 3600 MB/s. Sound Card: Realtek ALC897

Network Card: Realtek 8111H Gigabit Ethernet Adapter

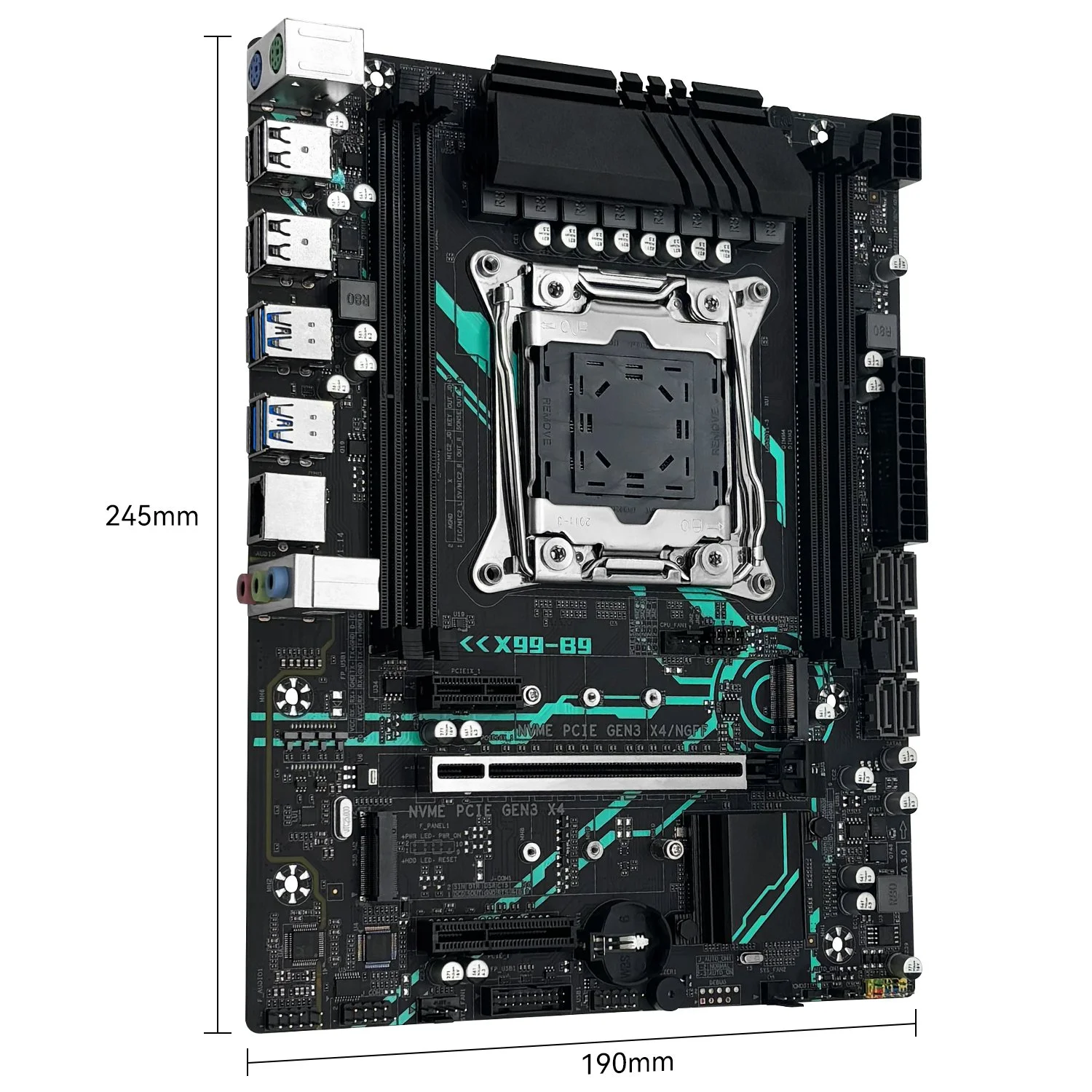

Dimensions: 245*190*35 mm

Shortcut Key: F11

Enter BIOS: Press the "DEL" key until the BIOS interface appears.

Fan Speed Control: Supports CPU_FAN1 interface only

Power Supply: 8 phases (4 phases), PWM controller - uP1649Q, MOSFET LEDs for each phase are located at the top and bottom, totaling 16 MOSFET LEDs

BIOS Functions:

Hibernate: No

Virtualization: Yes

4G+ Decoding: Yes

Diskless Boot: Yes

No Dedicated Graphics Card Required: Yes

Set BAR Decoding Size: Yes

Memory Timing Adjustment (XMP): No

AC Power Failure Recovery: Yes

Disk Array: Supports RAID 0, RAID 1, RAID 5, RAID 10

Note: If a boot error occurs when installing an Intel Core i7 5820K, 5960X, or 6900K processor with standard memory, please adjust the BIOS settings. Please contact customer support.
