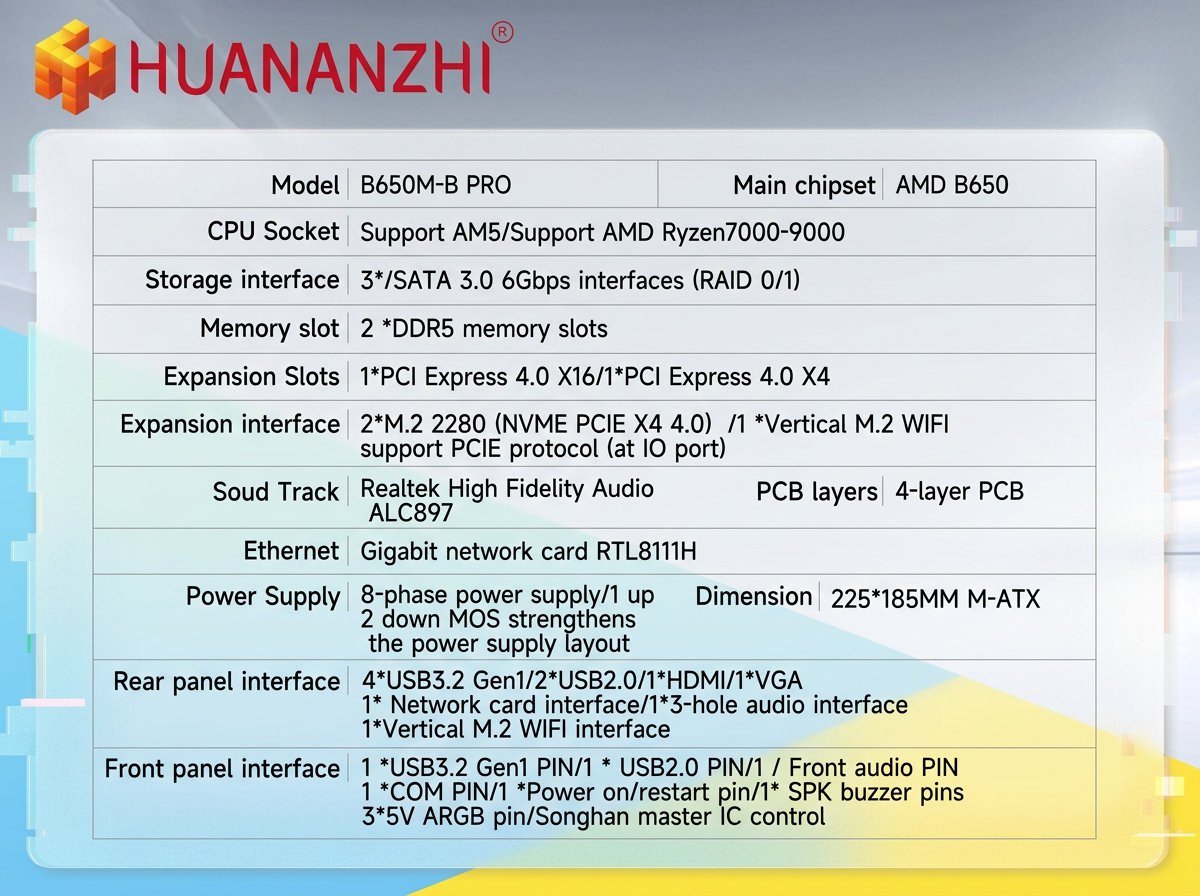

SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,4x USB 3.2/3.1 Gen 1

Battery Included: no

Brand Name: HUANANZHI

Chipset: AMD B650

Chipset Manufacturer: AMD

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: None

Maximum Ram Capacity: 96GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 3

Number of PCI: 0

Number of PCIe x 16: 1

Number of PCIe x 4: 1

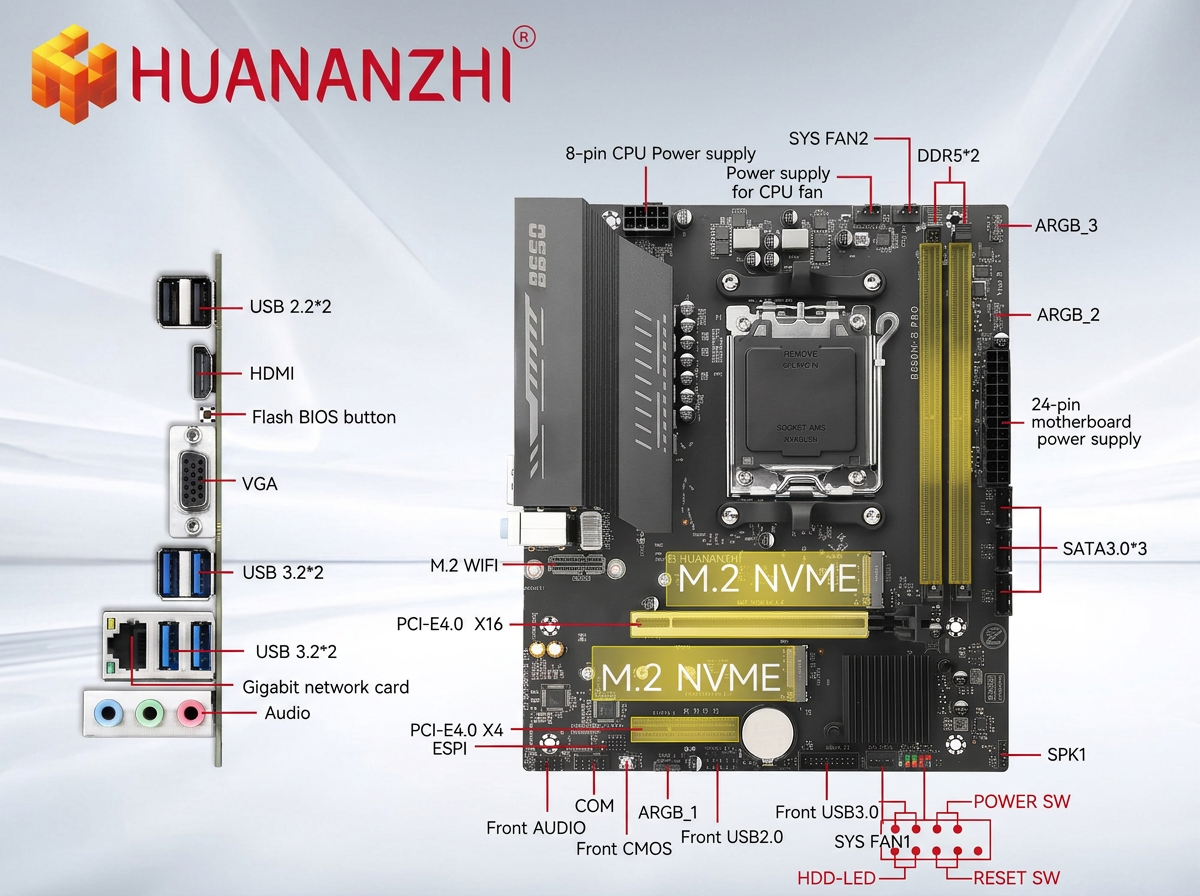

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),8-pin +12V Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 4.0

Package: Yes

Processor compatibility: AMD Ryzen 7000 Series-R3,AMD Ryzen 7000 Series-R5,AMD Ryzen 7000 Series-R7

RAID Supported: Yes

SATA RAID: 0,1

Socket Type: Socket AM5

Special Features: NONE

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR5

Support USB Type: USB 2.0,USB 3.2 Gen1

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,Video Production

With CPU: No

If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price

We promise to test and deliver the order you submitted within 24 hours

Before Packaging

Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
