Application: Desktop,Laptop,Server
Brand Name: huadisk
Bus Type: SATA III
Certification: CE,FCC,RoHS
Choice: yes
Controller: SMI/YEESTOR
Cooling Fin: No
High-concerned chemical: None
Interface Type: SATA
Interface protocol: M.2 SATA3.0 (6Gbps)
Max Sequential Read: 550
Max Sequential Write: 400
Nand Flash Type: TLC
Origin: Mainland China
Package: Yes
RGB: no
Size: M.2 2242
Style: SSD
Support Capacity: 128GB 256GB 512GB 1TB 2TB
Support device 1: lenovo T440s
Support device 2: lenovo W550s
Support device 3: lenovo X230s
Support device 4: lenovo L440
Transport Protocol: AHCI
Type: Internal
Notice for placing an order
This product is based on the M.2 SATA protocol, not the NVMe protocol. Please confirm the controller before placing an order. The SSD of this product only supports the Sata protocol
Regarding the issue of product size: detachable board. If you receive a 2280 size, you can break the board to get a 2242 size (After disassembly, it cannot be reassembled into 2280)

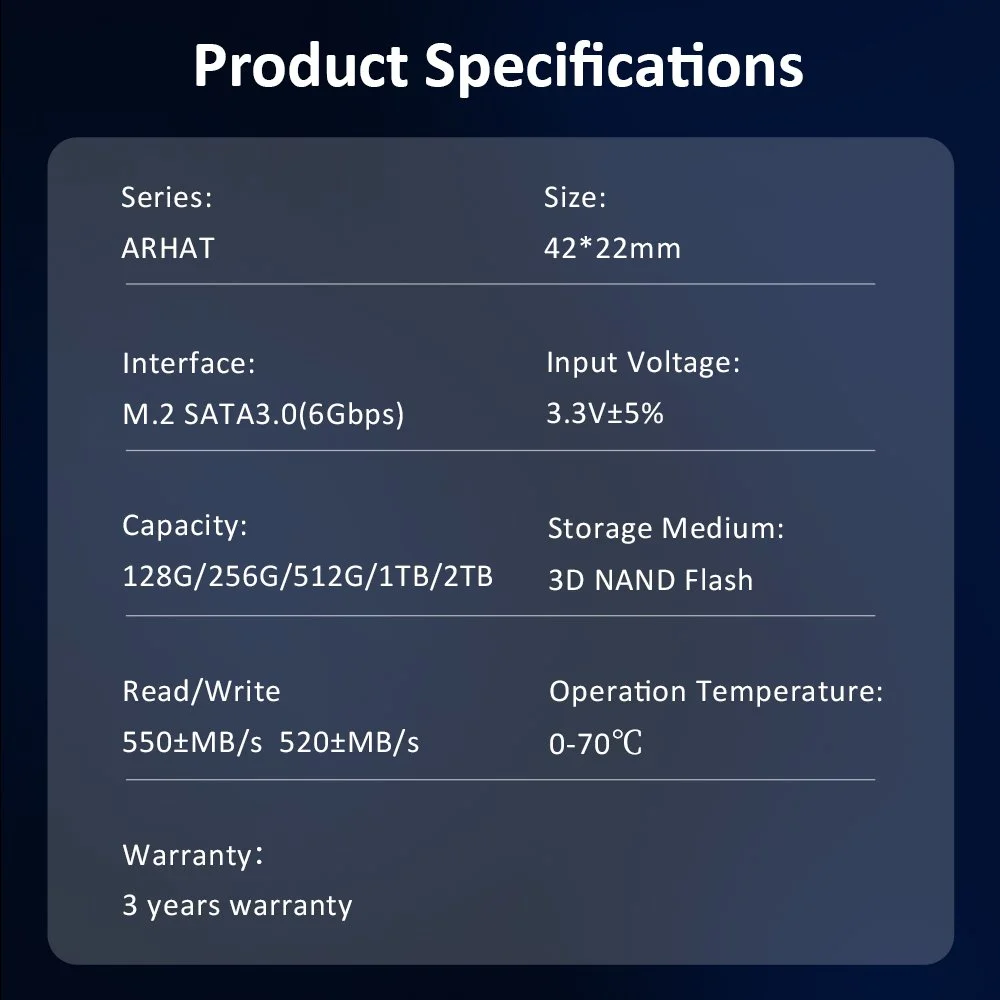

Descriptions:

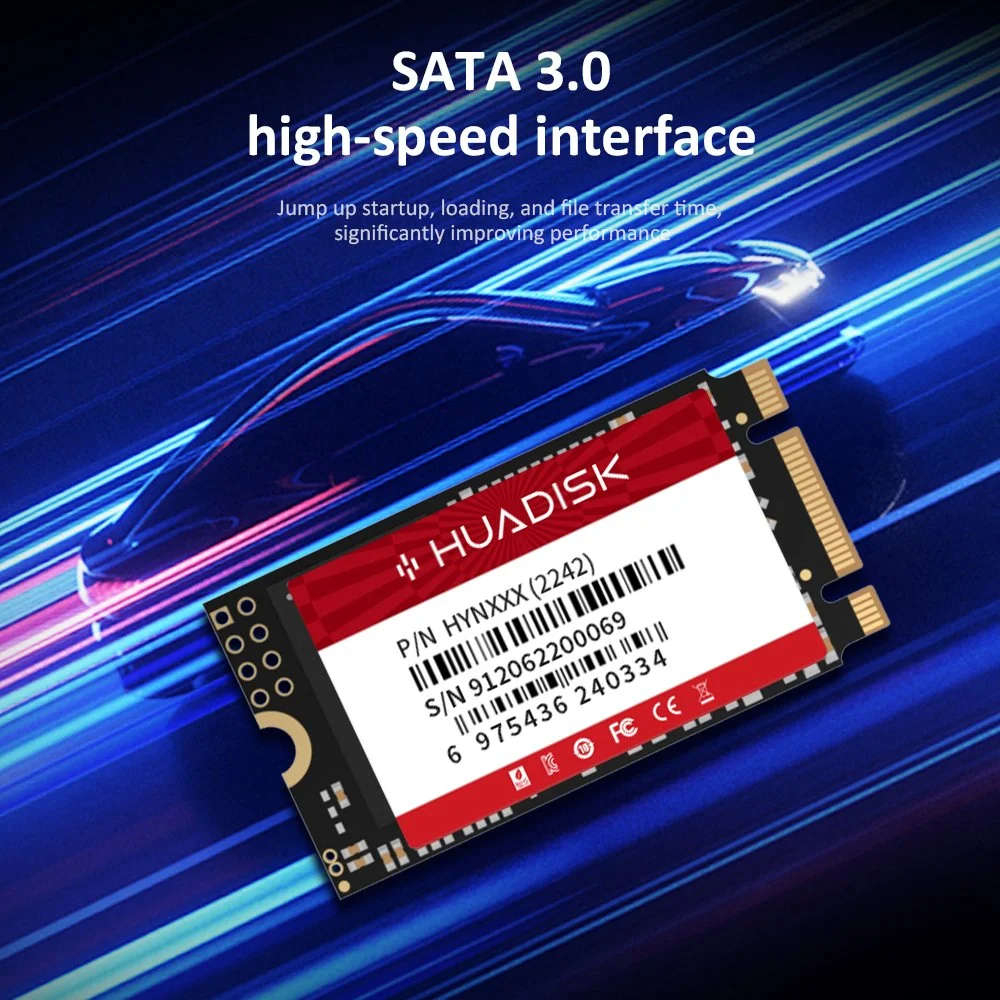

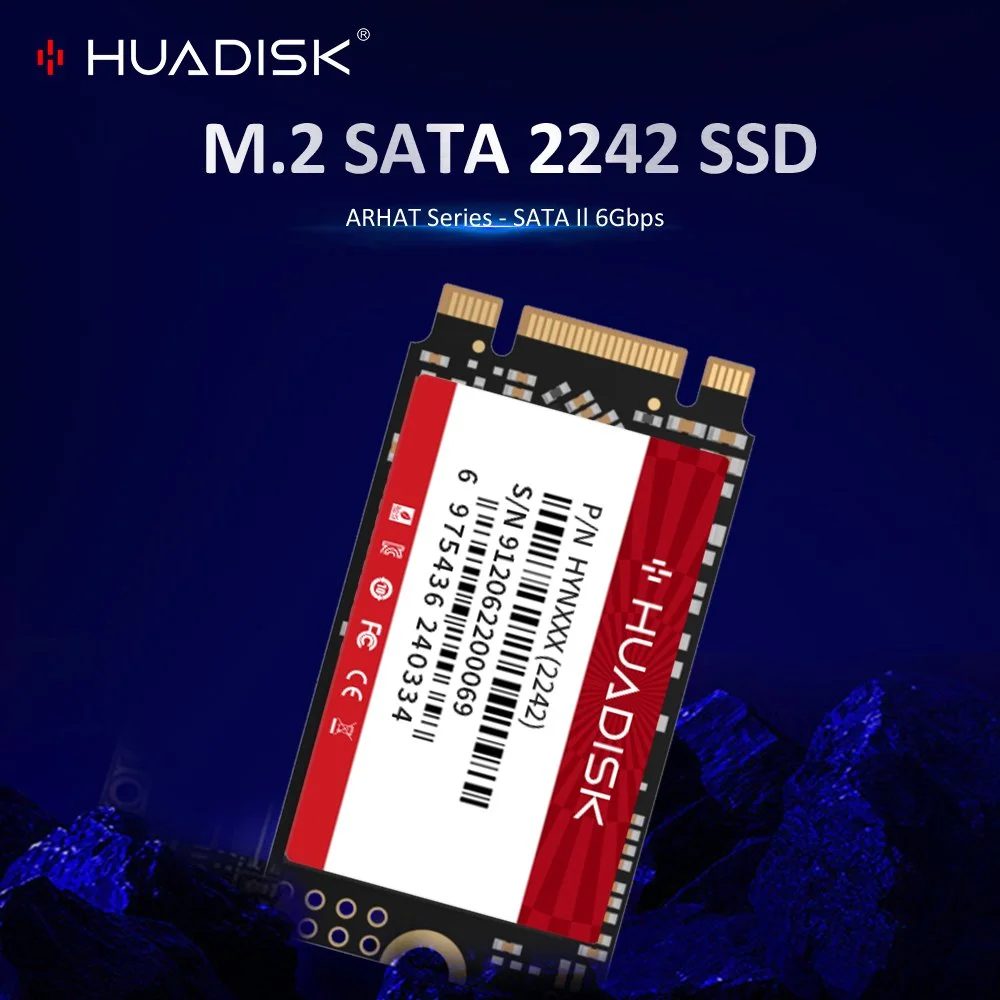

>>Product name: M.2 SATA 2242 SSD
>>Interface protocol: M.2 SATA3.0 (6Gbps)
>>Interface type : B+MKey
>>Controller: SMI/YEESTOR/Other
>>Nand Flash Type: TLC/QLC Random Shipment
>>Physical dimension: 42(L)X22(W)X3(H)mm
>>SupportCapacity:128GB 256GB 512GB 1TB 2TB
>>Max Sequential Read: 550Mbps
>>Max Sequential Write: 500Mbps
>>Input voltage: 3.3V±5%
>>Storage temperature: 0℃~70℃
>>Warranty/support: 3-years warranty with free technical support
>>TBW of Different capacity: 60TBW[128GB] 200TBW [256GB] 300TBW [512GB] 600TBW [1TB] 1200TBW [2TB]
Product features:
1.High Efficiency Performance
Sequential read/write speeds can reach up to 520/500MB/s. Loading time is greatly reduced, making more efficient in booting, entering games and reading files.
2.Powered by a new controller designed to harmonize the flash memory components and the interface for superior speed – with a M.2 SATA3.0 (6Gbps) interface that's 5x faster than mechanical hard disks.
3.The Huadisk SSD is equipped with the original master control and original flash menory particles. It can be used with various loads, whether its daily work or playing large-scales games, and can easily handle it.
4. M.2 SATA 2242 SSD series offers a variety of capacities for you to choose (128GB, 256GB, 512GB,1TB, 2TB), which to meet your needs for different scenarios.
5. M.2 SATA 2242 SSD compatible with all SATAIII interface devices, such as desktop, laptop, All-in-one PC, notebook and mining machines. Designed for storage upgrade, compatible with Windows, Mac OS, Linux operating systems.
Package include:
>>1 X M.2 SATA 2242 SSD
>>1 X Package box
Special note:available capacity ≠ identification capacity
The factory capacity of storage products is usually calculated according to 1MB=1000KB, 1GB=1000MB, and computer operating systems use binary algorithms, that is, 1MB=1024KB, 1GB=1024MB, so the usable capacity of storage products is about 90% of the identified capacity,normal phenomenon
(8G≈7.3G, 16G≈14.5G, 32G≈28.6G, 64≈58G, 128G≈118G, 256G≈230.4G, 512G≈476G, 1TB≈930G, 2TB≈1870G)
