SPECIFICATIONS

Application: Desktop

CPU: Intel LGA1200

Color: Black

Expansion Slots: Intel1200 for 10th Gen Pentium Gold and Celeron Pr

Memory: 4*DDR4

Package: Paper Carton

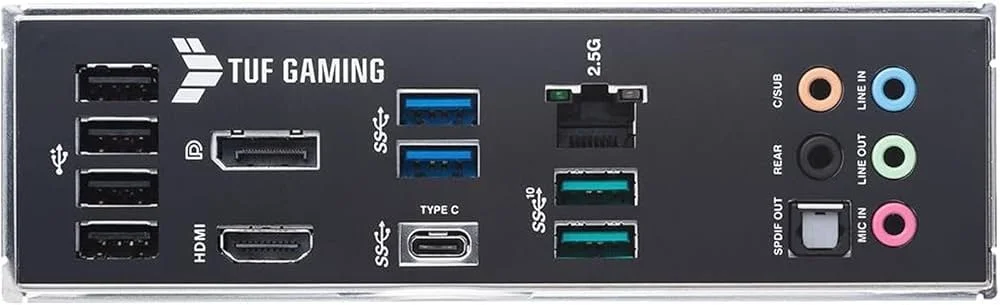

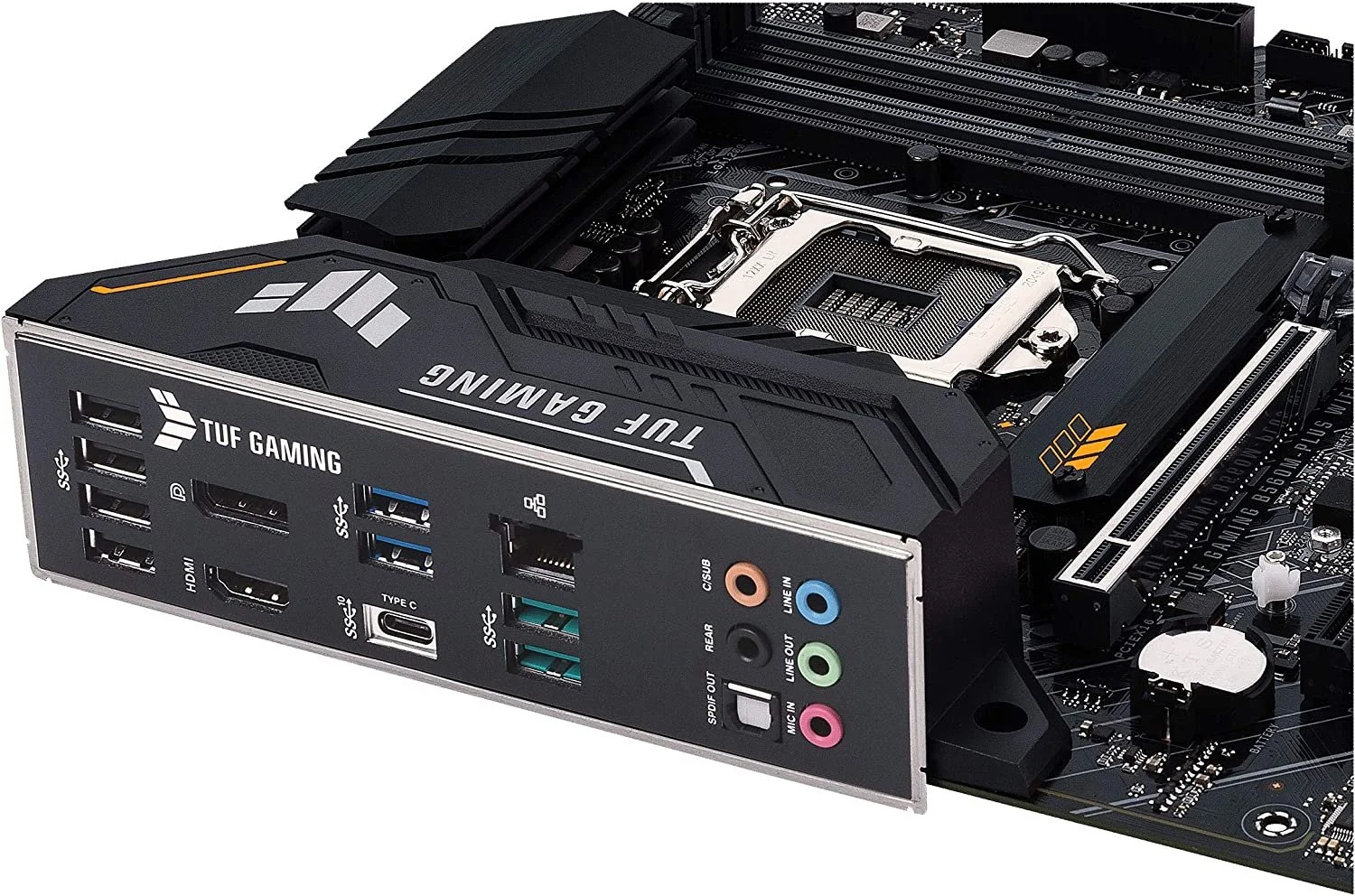

Ports: HDMI DP,SATA, DVI, USB 2.0 USB 3.0, M.2, PCI-E 3.0

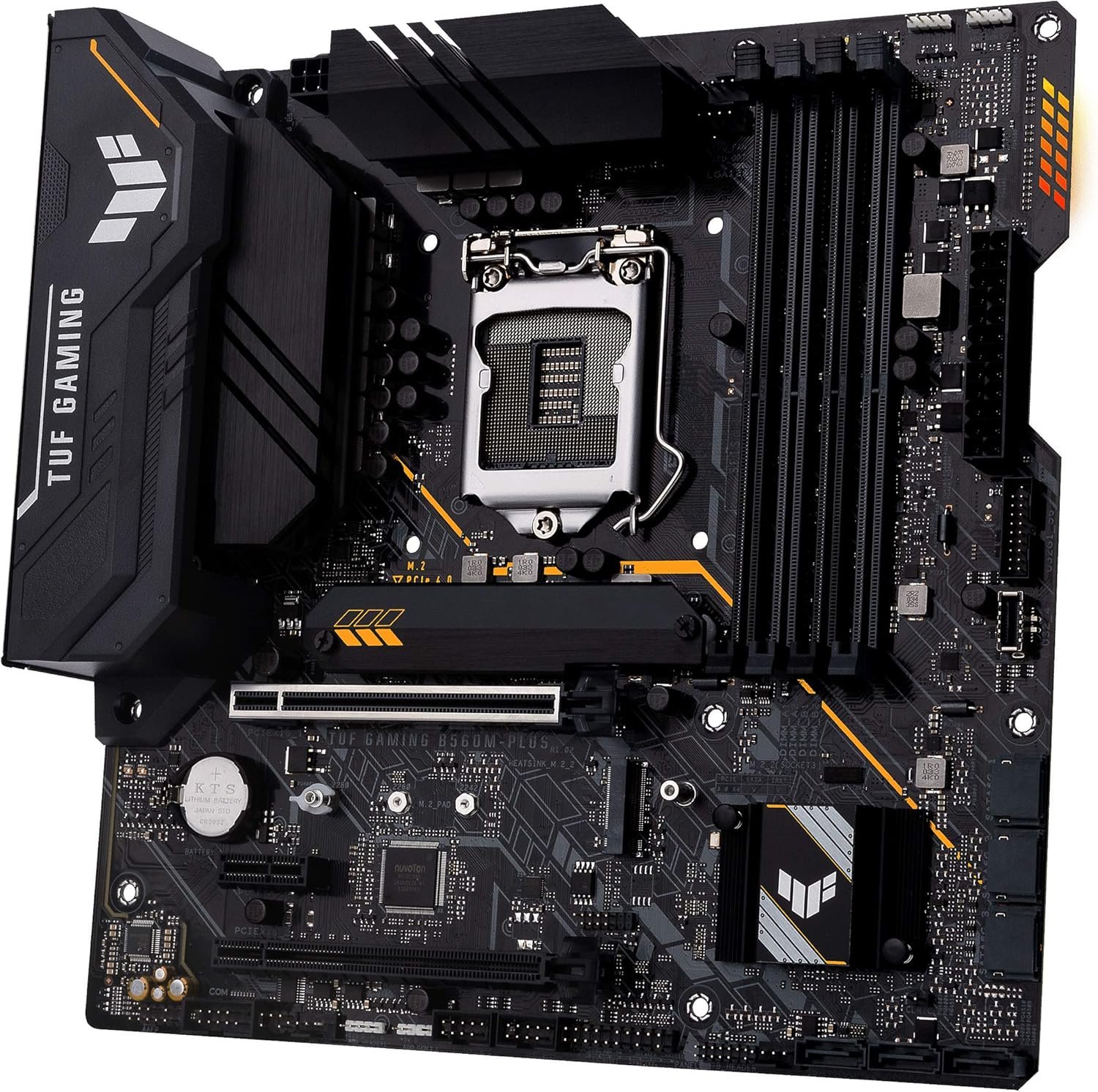

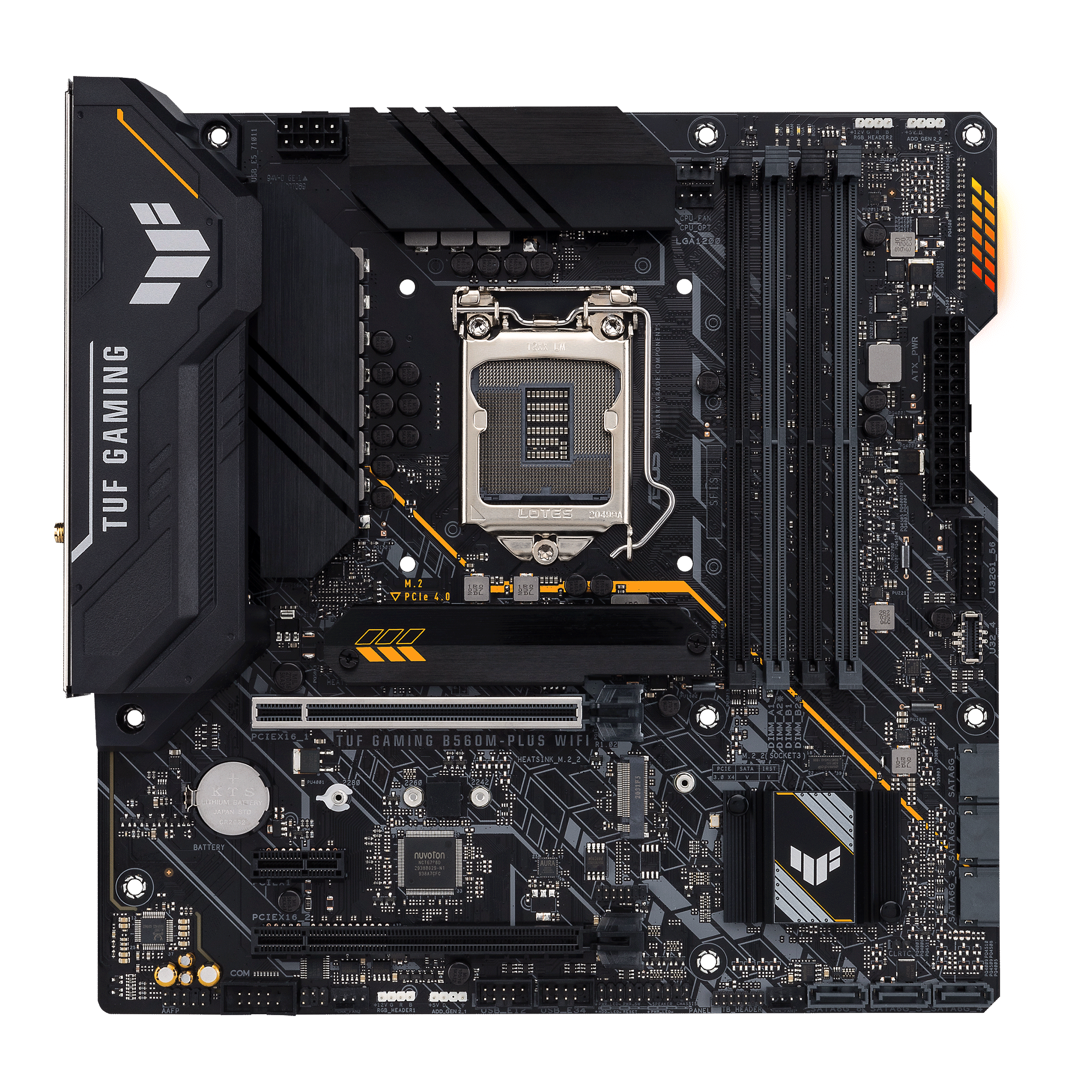

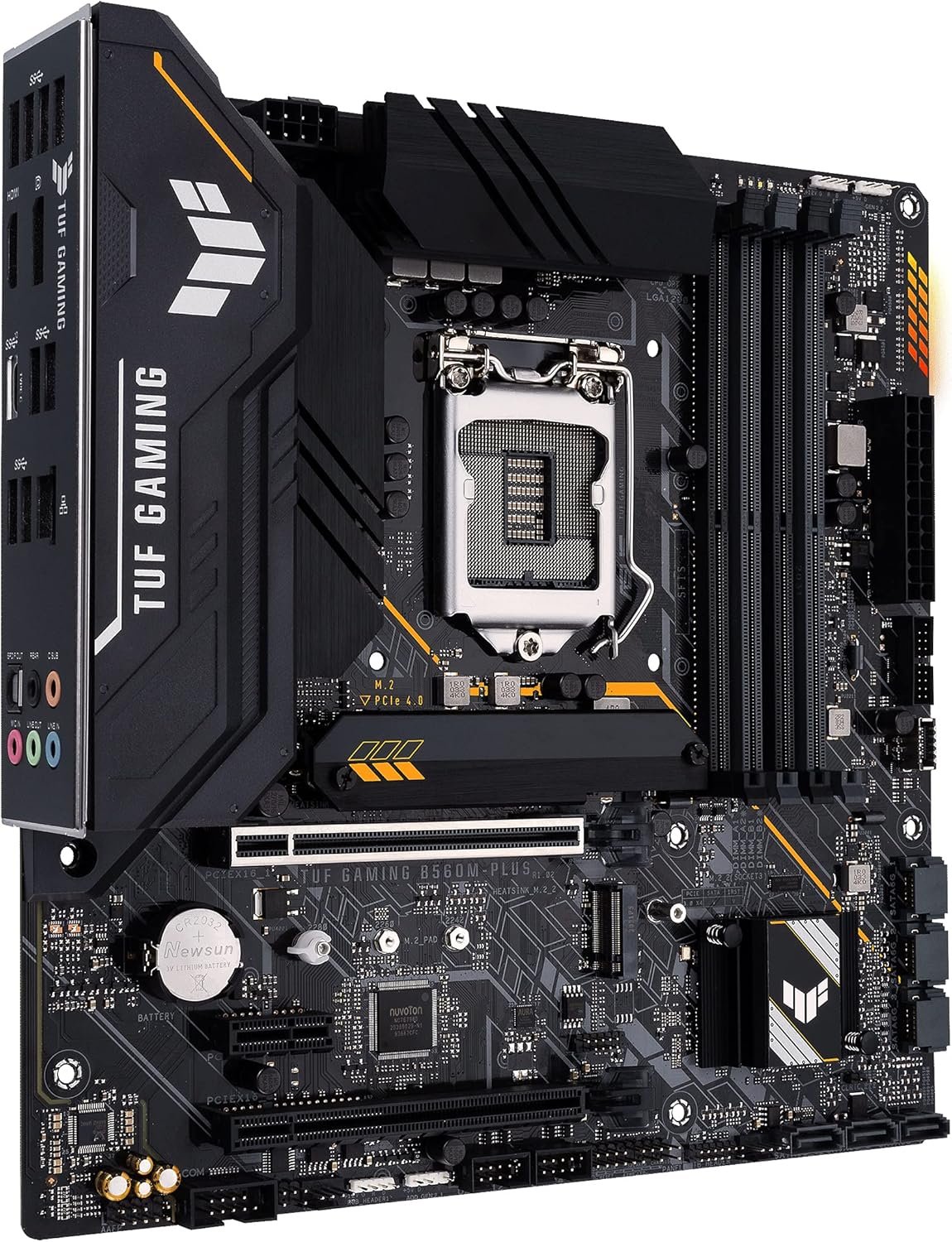

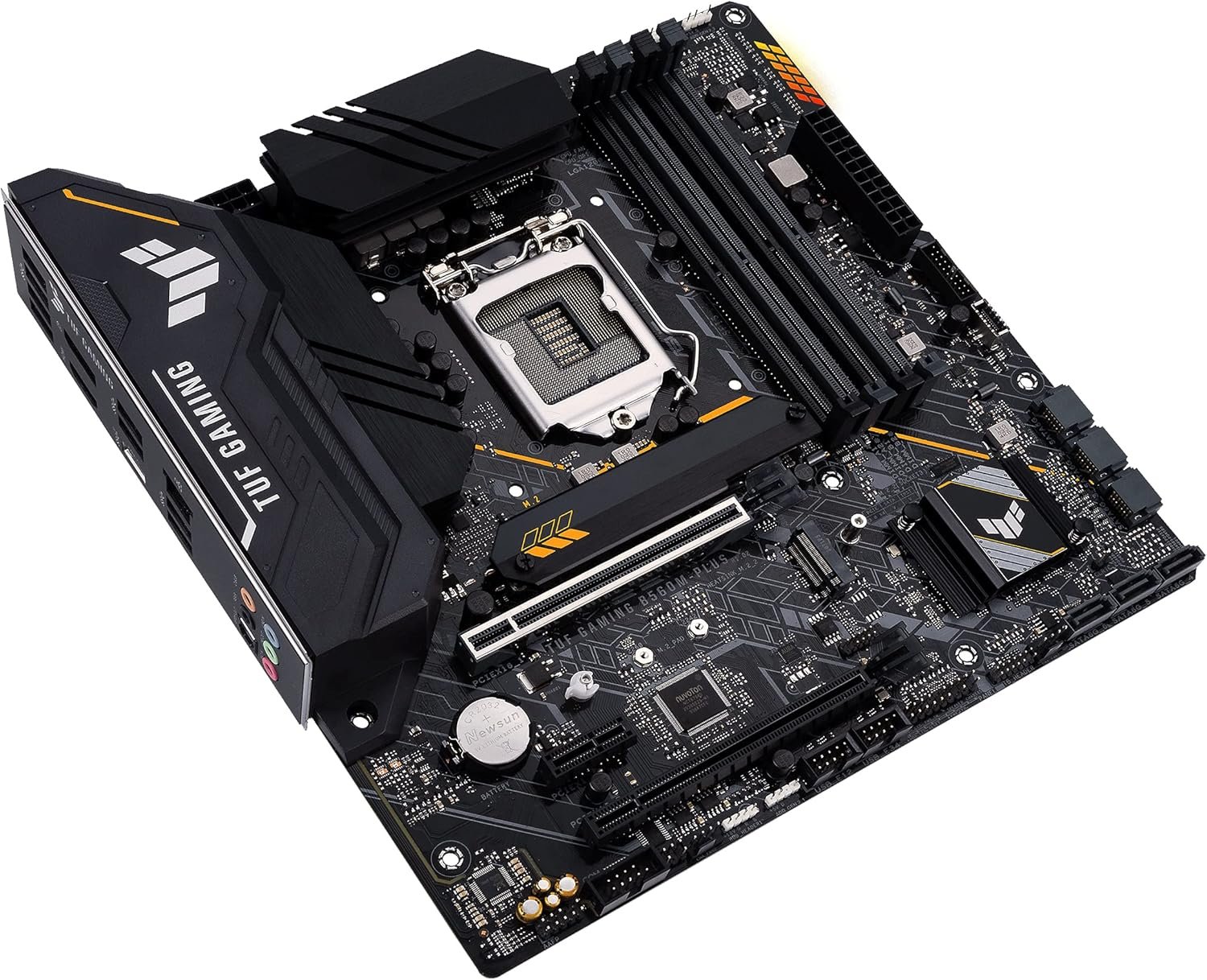

Product Name: ASUS TUF GAMING B560M-PLUS Motherboard

Shape: Square

Size: 24.4cm x 24.4cm

application: Desktop

brand name: for ASUS

chipset: Intel B560

chipset manufacturer: Intel

cpu type: Intel,Core I7/Core I5/Core I3

form factor: Micro-ATX

graphics card type: Integrated-need CPU support

hard drive interface: SATA

item condition: New

maximum ram capacity: 12Gb

memory bank: 4 DDR4

memory channel: Four

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: SATA,DVI,PCI-Express X16,USB 2.0,PS2,Display Port,Ethernet,Usb3.1,M.2,USB 3.0,PCI-E 3.0,PCI-Express X1,HDMI

private mold: No

products status: Refurbished,Used

socket type: LGA1200

with cpu: No

‍ ‍

Products Description

‍ ‍

Model

ASUS TUF GAMING B560M-PLUS

BColor

Black

Shape

Square

Size

24.4cm x 24.4cm

Package

Paper box

‍ ‍ ‍

SPECIFICATION

ASUS TUF GAMING B560M-PLUS

Central Processing Unit (CPU) Supports 11th Generation Intel® Core™/10th Generation Intel® Core™, Pentium®, Celeron® processors with Intel® LGA1200 socket. Supports Intel® 14nm processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Please visit the ASUS website w3.asus.com.cn for a list of supported Intel processors. **Intel® Turbo Boost Max 3.0 technology support varies depending on the processor type. Chipset Intel® B560 High-Speed ​​Chipset Memory DDR4 5000(Overclocked)/4800(Overclocked)/4600(Overclocked)/4400(Overclocked)/4266(Overclocked)/4000(Overclocked)/3733(Overclocked)/3600(Overclocked)/3466(Overclocked)/3333(Overclocked)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Supports dual-channel memory architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II memory optimization technology * 10th Gen Intel® Core™ i7/i9 processors natively support 2933/2800/2666/2400/2133; others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Generation Intel® Processors natively support 3200/2933/2800/2666/2400/2133 MHz. * Please refer to https://w3.asus.com.cn for memory QVL (Qualified Vendor Support List). Memory frequency support depends on the CPU type. Graphics Card * Graphics card specifications vary depending on the processor type. **11th Generation/10th Gen Intel® Processors support DisplayPort 1.4, with a maximum resolution of 4096 x 2304 @60Hz. Please visit www.intel.com for updated information. ***Only 11th Generation Intel® Core™ Processors support HDMI™ 2.0, with a maximum resolution of 4K@60Hz. Other processors only support HDMI™ 1.4, with a maximum resolution of 4K@30Hz. Please visit www.intel.com for updated information. Expansion Slots 11th Generation and 10th Gen Intel® Processors 1 x PCIe 4.0/3.0 x16 Slot* - 11th Gen Intel® Processors support PCIe 4.0 x16 - 10th Gen Intel® Processors support PCIe 3.0 x16 Intel® B560 Chipset 1 x PCIe 3.0 x16 Slot (supports x4 mode) 1 x PCIe 3.0 x1 Slot Storage Device Interfaces Supports 2 x M.2 Slots and 6 x SATA 6Gb/s Interfaces 11th Gen Intel® Processors M.2_1 Slot (Key M), 2242/2260/2280 Type Storage Devices - Only 11th Gen Intel® Core™ Processors support PCIe 4.0 x4 mode. This slot will be disabled if other processors are used. Intel® B560 Chipset M.2_2 Slot (Key M), Type 2242/2260/2280 Storage Device (Supports PCIe 3.0 x4 & SATA Mode)* 6 x SATA 6Gb/s Interfaces Enabling Intel® Optane™ Memory (Hybrid Storage Device) requires installation in a PCH-attached slot with Intel® Rapid Storage Technology. * The M.2_2 slot shares bandwidth with SATA_2. When the M.2_2 slot is running in SATA mode, SATA_2 will be disabled. USB Ports Rear Panel USB: 9 ports total 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (supports USB Type-C®) 1 x USB 3.2 Gen 1 port (expandable to 2 USB 3.2 Gen 1 ports) 2 x USB 2.0 ports (expandable to 4 USB 2.0 ports) Audio Features - Supports: Jack-detection, Multi-Streaming, Jack-retasking - Supports playback up to 24-bit/192kHz Audio Functions - Audio separation line - Rear S/PDIF optical digital output interface - High-quality Japanese audio capacitors - Layered left and right channel design Rear panel I/O ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 5 x audio jacks 1 x Optical S/PDIF output port Built-in I/O ports Fan and cooling related 1 x 4-pin CPU fan header 1 x 4-pin CPU OPT fan header 2 x 4-pin chassis fan headers Power related 1 x 24-pin main power connector 1 x 8-pin +12V power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s Interfaces USB 1 x USB 3.2 Gen 1 port (supports USB Type-C®) 1 x USB 3.2 Gen 1 port (expandable to 2 USB 3.2 Gen 1 ports) 2 x USB 2.0 ports (expandable to 4 USB 2.0 ports) Others 2 x AURA Gen 2 programmable headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin system panel header with chassis open warning function 1 x Thunderbolt™ header Unique Features ASUS TUF Protection - Digital Power Design with DrMOS - Enhanced DRAM Overcurrent Protection - ESD Protection - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless Steel Moisture-Proof I/O Interfaces ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [Red], DRAM [Yellow], VGA [White], Boot Device [Yellow-Green]) - Q-Slot ASUS Thermal Solutions - User-friendly M.2 Heatsink - VRM Heatsink Design ASUS EZ DIY - ProCool - Pre-installed I/O shield AURA Sync - AURA RGB header - Second-generation programmable ARGB header Motherboard Size microATX type 24.4cm x 24.4cm

‍‍ ‍
