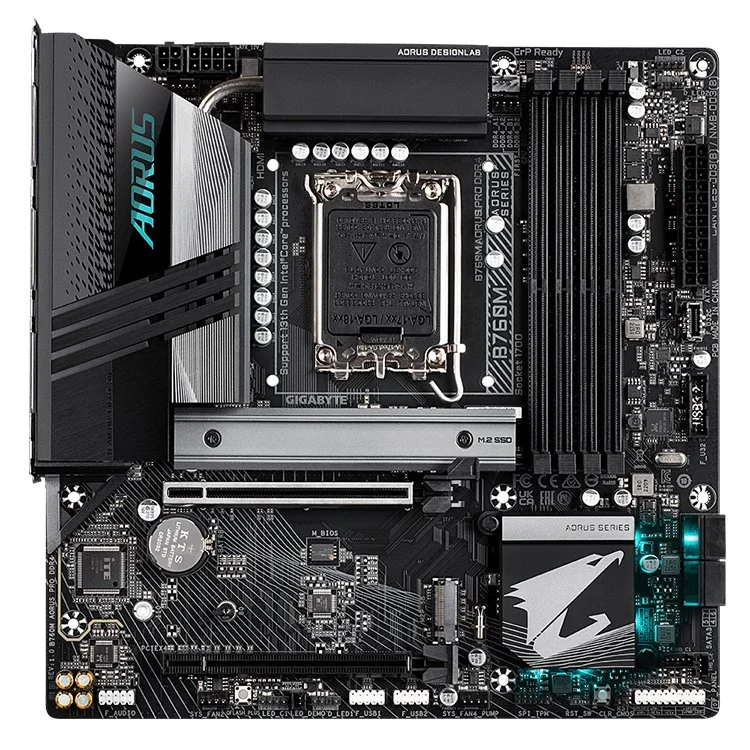

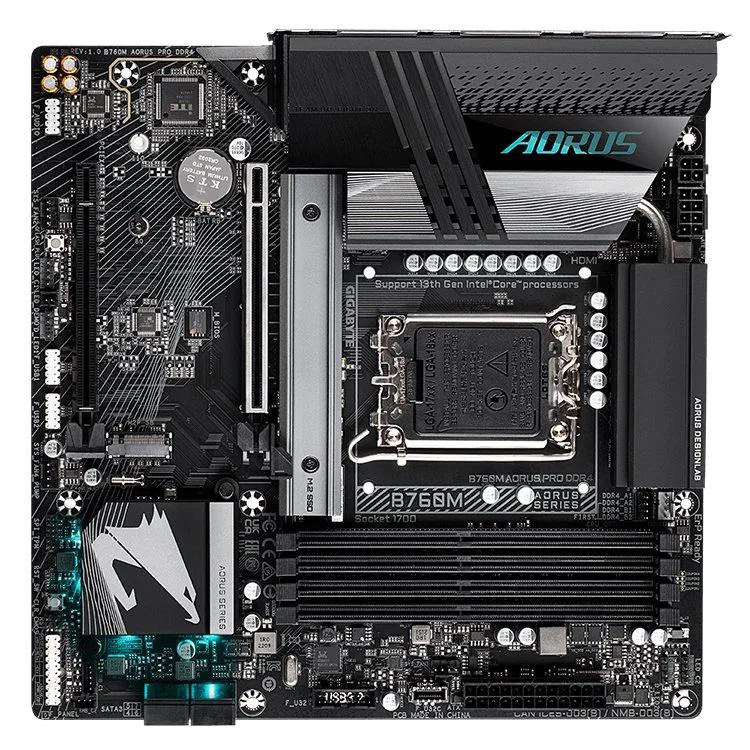

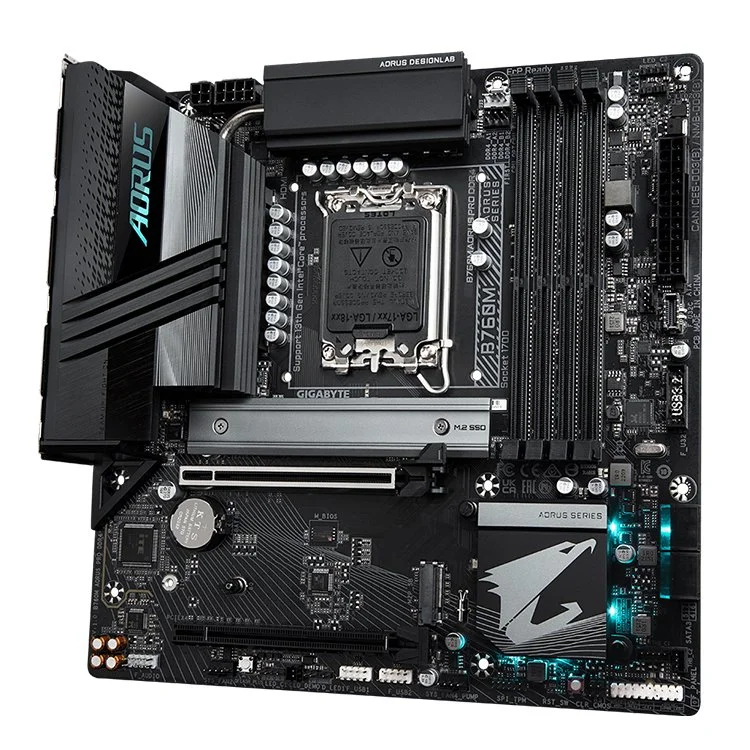

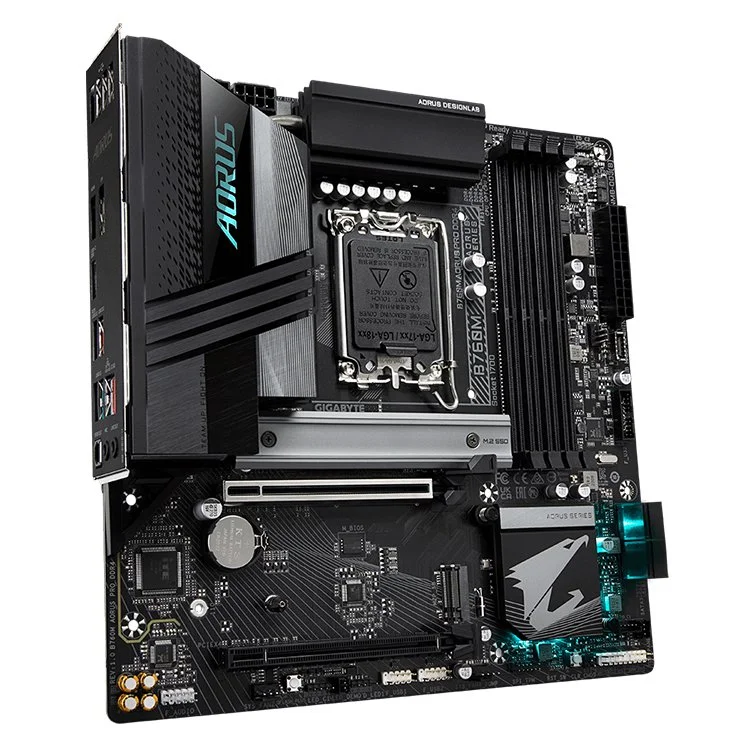

GIGABYTE B760M AORUS PRO AX DDR4 Motherboard Support 13th and 12th Gen Series Processors  with Intel Socket LGA 1700

· Intel^® Socket LGA 1700:Support 13th and 12th Gen Series Processors

· Unparalleled Performance:Twin 14*+1+1 Phases Digital VRM Solution

· Dual Channel DDR4:4*DIMMs with XMP Memory Module Support

· Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors

· Advanced Thermal Design & M.2 Thermal Guard :To Ensure VRM Power Stability & M.2 SSD Performance

· EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design

· Fast Networks: 2.5GbE LAN & Intel^® Wi-Fi 6E 802.11ax

· Extended Connectivity:Front USB-C^® 10Gb/s, Rear USB-C^® 20Gb/s, DP, HD MI

· Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

· Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

· CPU

1. LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*

2. L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.

· Chipset

3. Intel^® B760 Express Chipset

· Memory

4. Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

5. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

6. Dual channel memory architecture

7. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

8. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

9. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

· Onboard Graphics

Integrated Graphics Processor-Intel^® HD Graphics support:

10. 1 x HD MI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HD MI 2.0 version and HDCP 2.3.

11. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

· Audio

12. Realtek^® Audio CODEC

13. High Definition Audio

14. 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

15. Support for S/PDIF Out

· LAN

16. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

· Wireless Communication module

Intel^® Wi-Fi 6E AX211

17. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

18. BLUETOOTH 5.3

19. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

· Expansion Slots

CPU:

20. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

21. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

· Storage Interface

CPU:

22. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

23. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

24. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

· USB

Chipset:

25. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2x2 support

26. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header

27. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

28. 1 x USB 3.2 Gen 1 port on the back panel

29. 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

30. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:

31. 4 x USB 2.0/1.1 ports on the back panel

· Internal I/O Connectors

32. 1 x 24-pin ATX main power connector

33. 1 x 8-pin ATX 12V power connector

34. 1 x 4-pin ATX 12V power connector

35. 1 x CPU fan header

36. 1 x CPU fan/water cooling pump header

37. 3 x system fan headers

38. 1 x system fan/water cooling pump header

39. 2 x addressable LED strip headers

40. 2 x RGB LED strip headers

41. 2 x M.2 Socket 3 connectors

42. 4 x SATA 6Gb/s connectors

43. 1 x front panel header

44. 1 x front panel audio header

45. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support

46. 1 x USB 3.2 Gen 1 header

47. 2 x USB 2.0/1.1 headers

48. 2 x Thunderbolt™ add-in card connectors

49. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

50. 1 x reset button

51. 1 x Q-Flash Plus button

52. 1 x reset jumper

53. 1 x Clear CMOS jumper

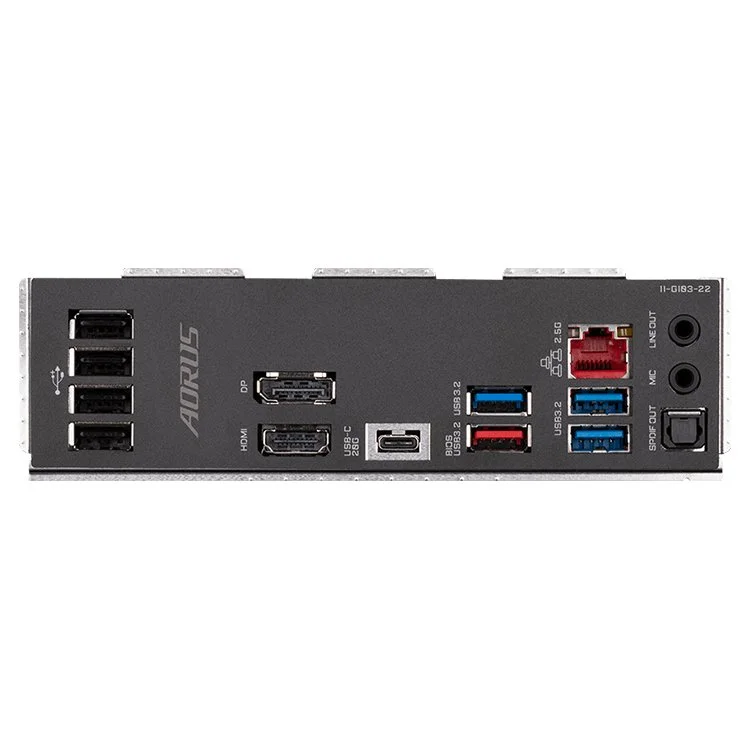

· Back Panel Connectors

54. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support

55. 1 x USB 3.2 Gen 2 Type-A port (red)

56. 3 x USB 3.2 Gen 1 ports

57. 4 x USB 2.0/1.1 ports

58. 2 x SMA antenna connectors (2T2R)

59. 1 x HD MI port

60. 1 x DisplayPort

61. 1 x RJ-45 port

62. 1 x optical S/PDIF Out connector

63. 2 x audio jacks

· I/O Controller

64. iTE^® I/O Controller Chip

· H/W Monitoring

65. Voltage detection

66. Temperature detection

67. Fan speed detection

68. Water cooling flow rate detection

69. Fan fail warning

70. Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

· BIOS

71. 1 x 256 Mbit flash

72. Use of licensed AMI UEFI BIOS

73. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

· Unique Features

74. Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

75. Support for Q-Flash

76. Support for Q-Flash Plus

· Bundled Software

77. Norton^® Internet Security (OEM version)

78. LAN bandwidth management software

· Operating System

79. Support for Windows 11 64-bit

80. Support for Windows 10 64-bit

· Form Factor

81. Micro ATX Form Factor; 24.4cm x 24.4cm
