SPECIFICATIONS

Application: Desktop

Audio Channels: 2.1

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: MACHINIST

Certification: RoHS,CE

Chipset: Intel X79

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: none

Material: others

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 1

Number of PCI: 0

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: M.2

Processor compatibility: Intel Xeon

Quality Certification: ce,ROHS

RAID Supported: no

SATA RAID: 0

Socket Type: LGA 2011

Special Features: NONE

Storage Interface Type: SATA

Support Memory Type: DDR3

Support USB Type: USB 2.0

Supports M.2 SSD: 2280

TPM2.0: NO

Usage Scenario: Gaming,Audio & Video,Office,others

With CPU: Yes

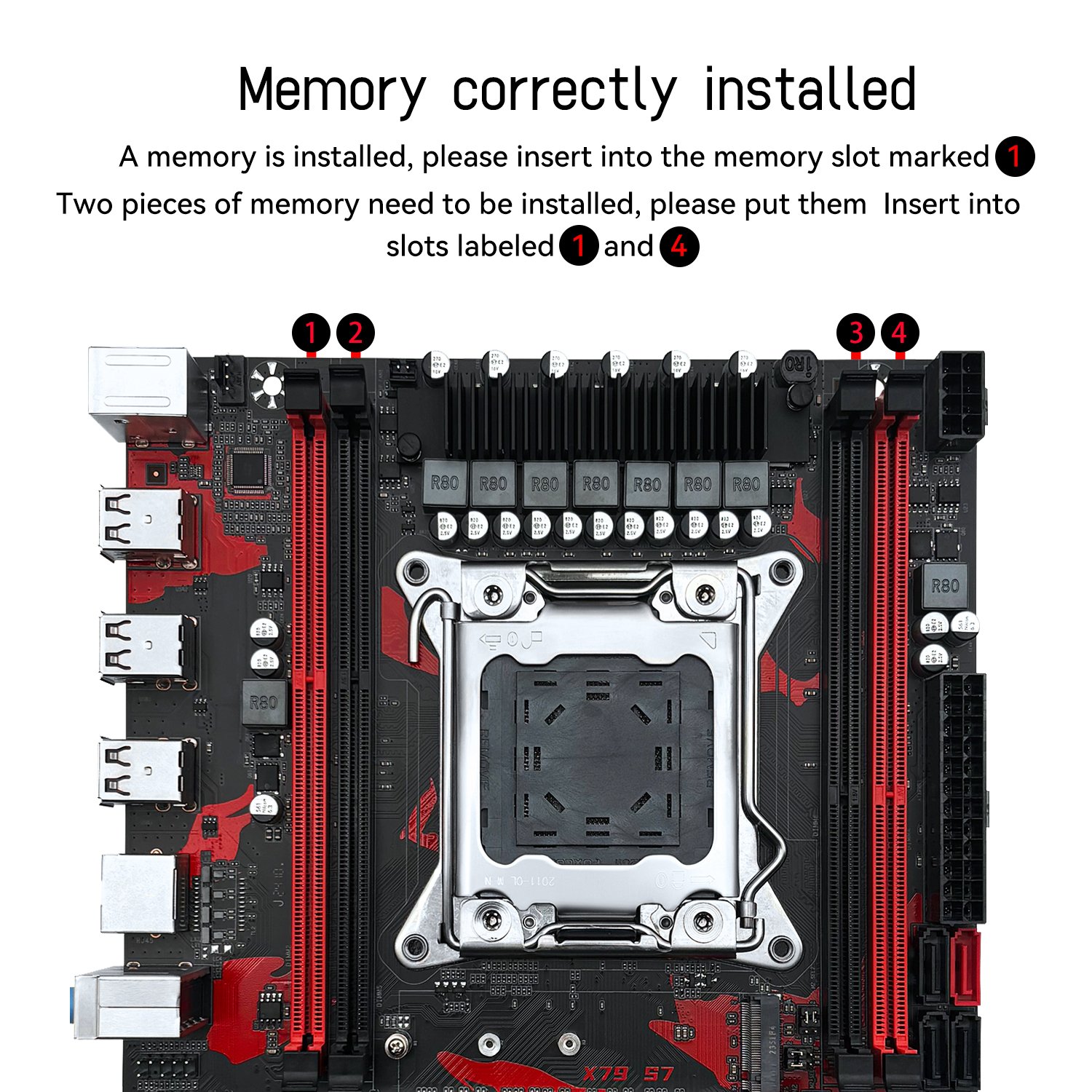

>> The motherboard memory slot needs to be properly installed in the fifth picture.

>> Please note the bundle options before purchasing. Purchase a single motherboard. We do not send CPU and memory. Please check it carefully.

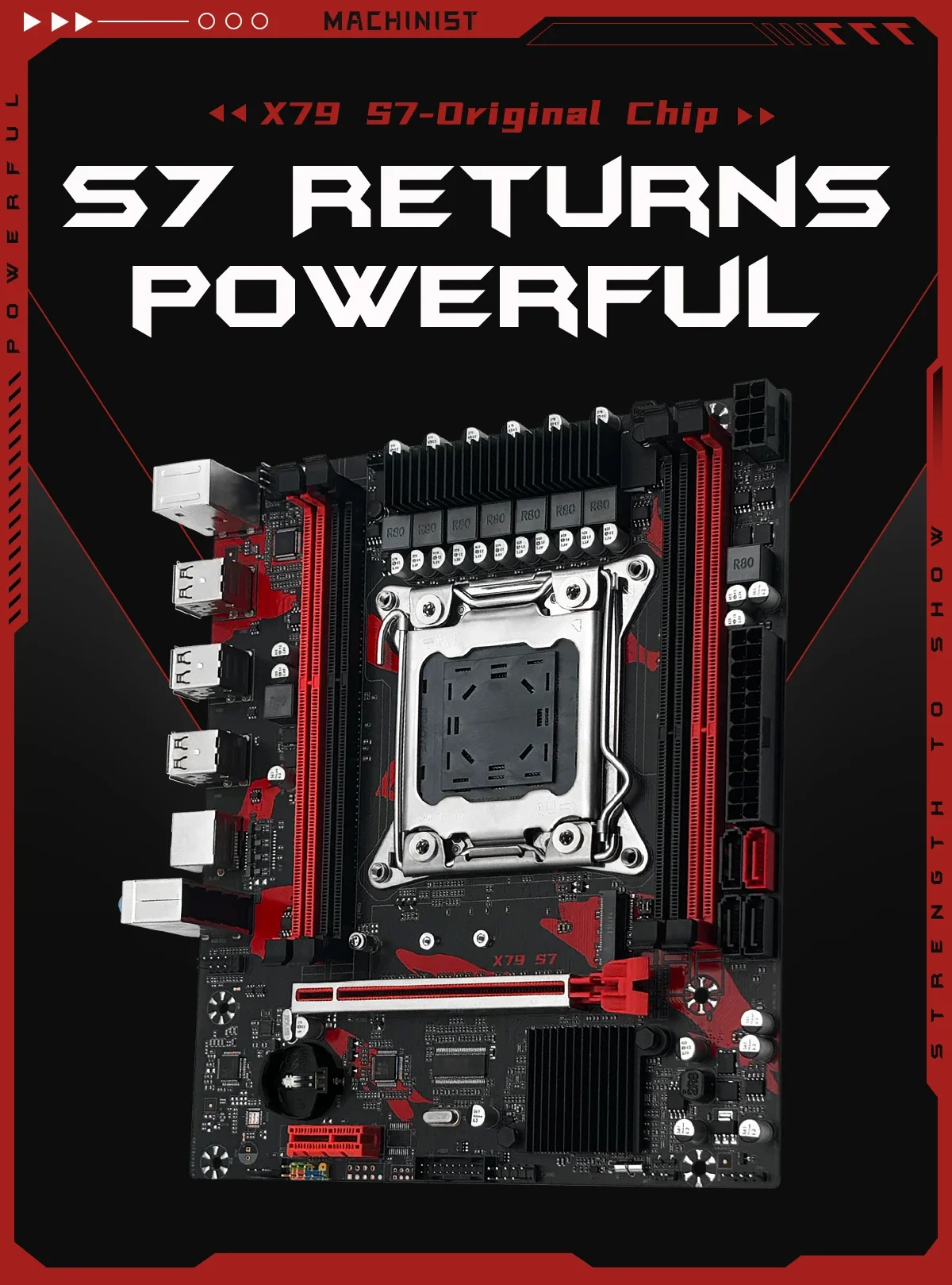

Motherboard : X79 S7.

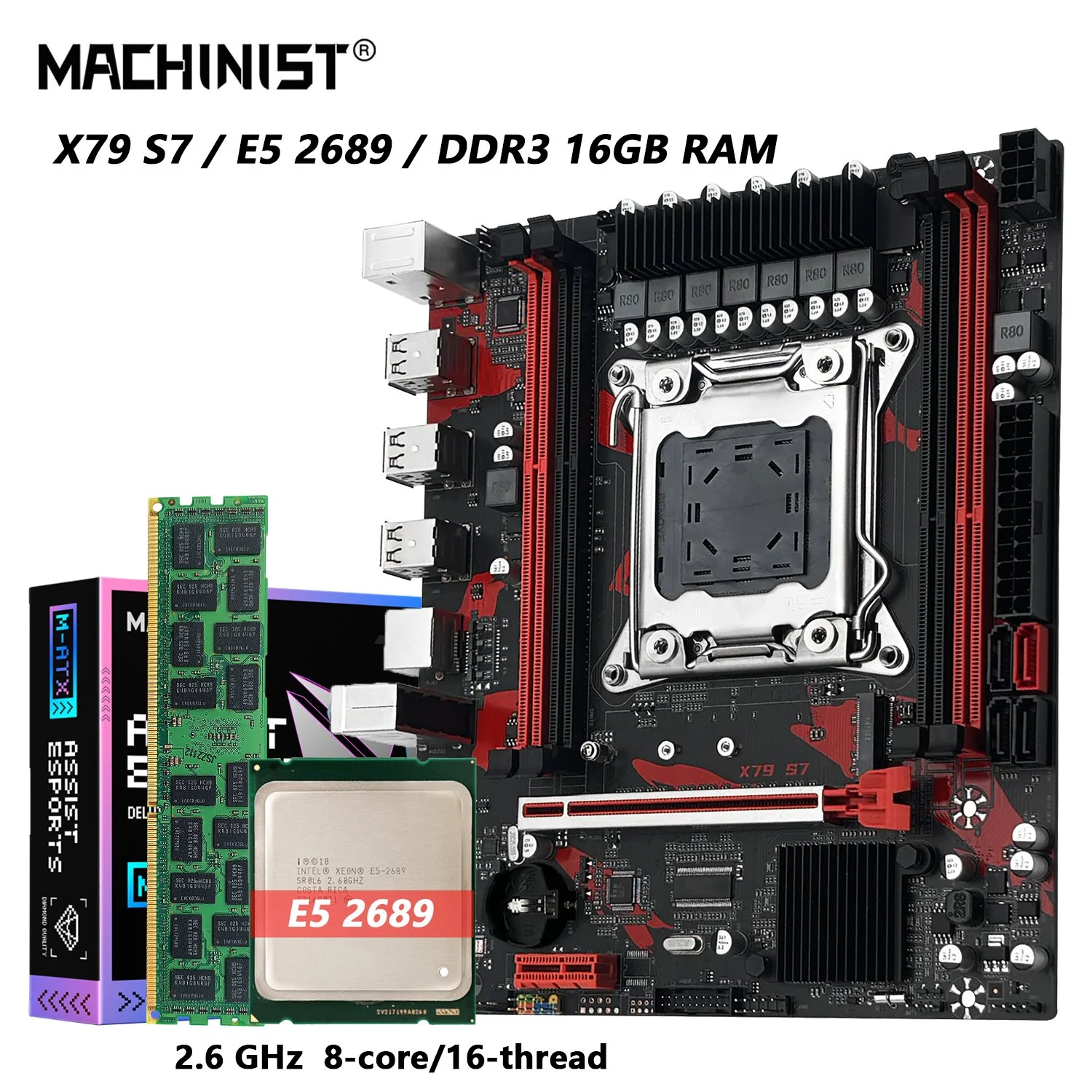

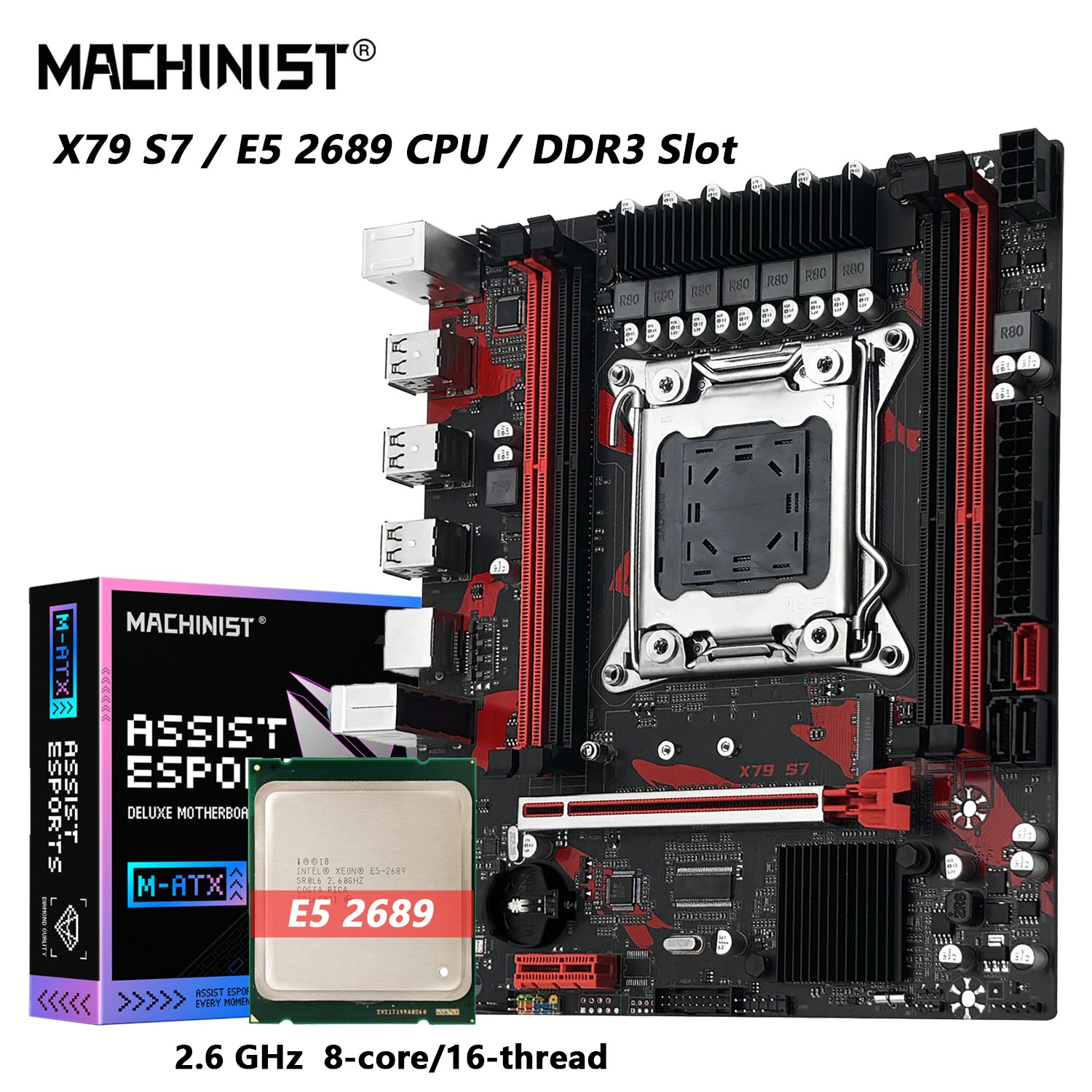

Motherboard+CPU : X79 S7 + E5 2689.

Motherboard+CPU+RAM : X79 S7 + E5 2689 + DDR3 16GB ECC memory *1pcs.

Free accessories: I/O shield *1, SATA cable *1pcs.

(They are all packaged after manual testing before sending. If there are any gifts missing, please understand!)

Motherboard information:

>>Brand:MACHINIST.

>>Motherboard model: X79 S7.

>>Processor: Supports Intel LGA2011-pin series processors.

>> Chipset: Intel X79 Chipset.

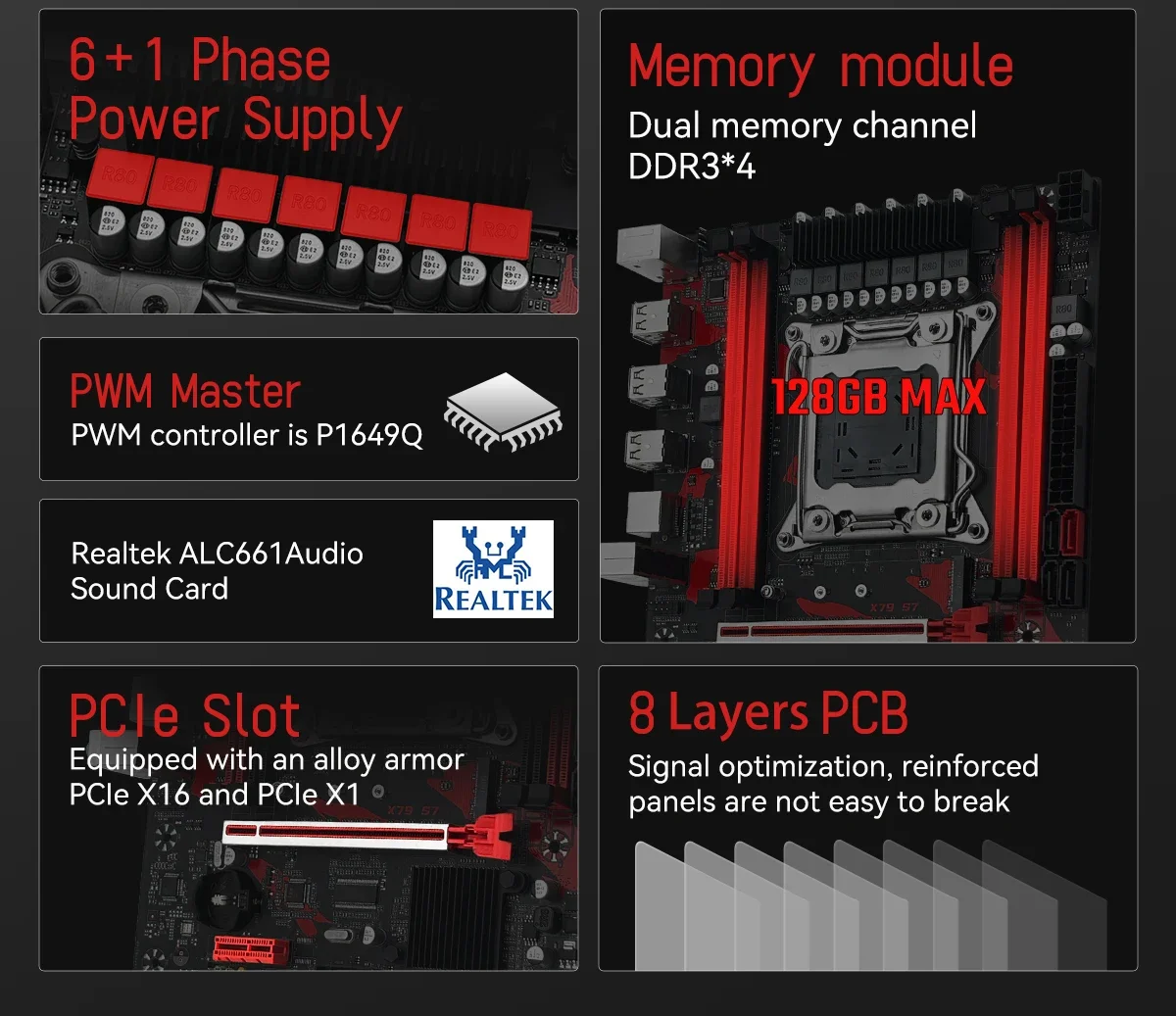

>>Memory

Technology: Dual Channel DDR3. Support 1066/1333/1600/1866MHZ.

Maximum capacity 128GB (32G x 4).

Memory slot: 4*240 PIN DDR3.

Supported memory types: DDR3 desktop and server memory.

(Note: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may be incompatible.)

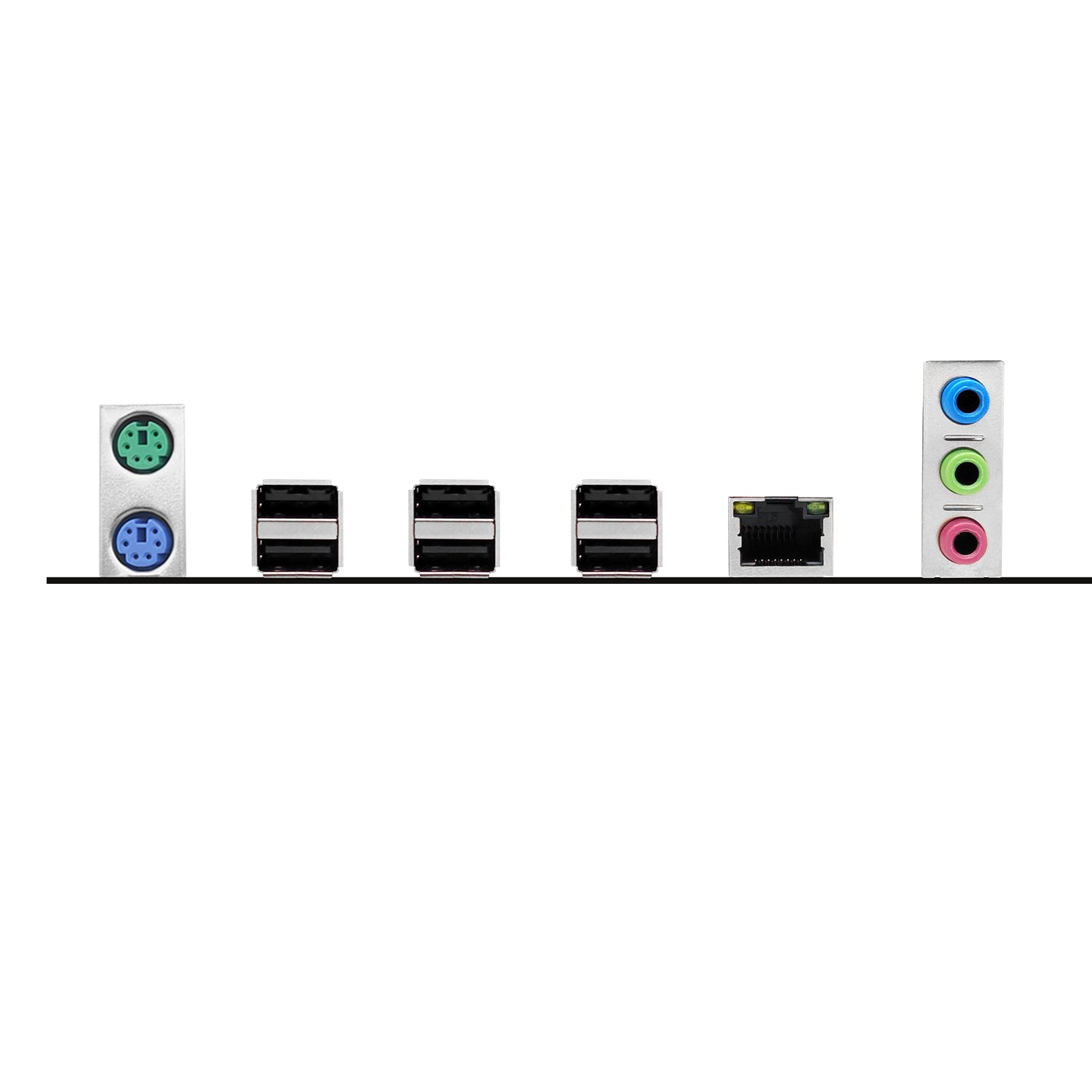

>> Post I/O

PS/2: 1 KB interface + 1 MS interface.

USB interface: 6 USB2.0.

Ethernet: 1 Gigabit network card.

Audio: 1 (Mic-in, Line-out, Line-in).

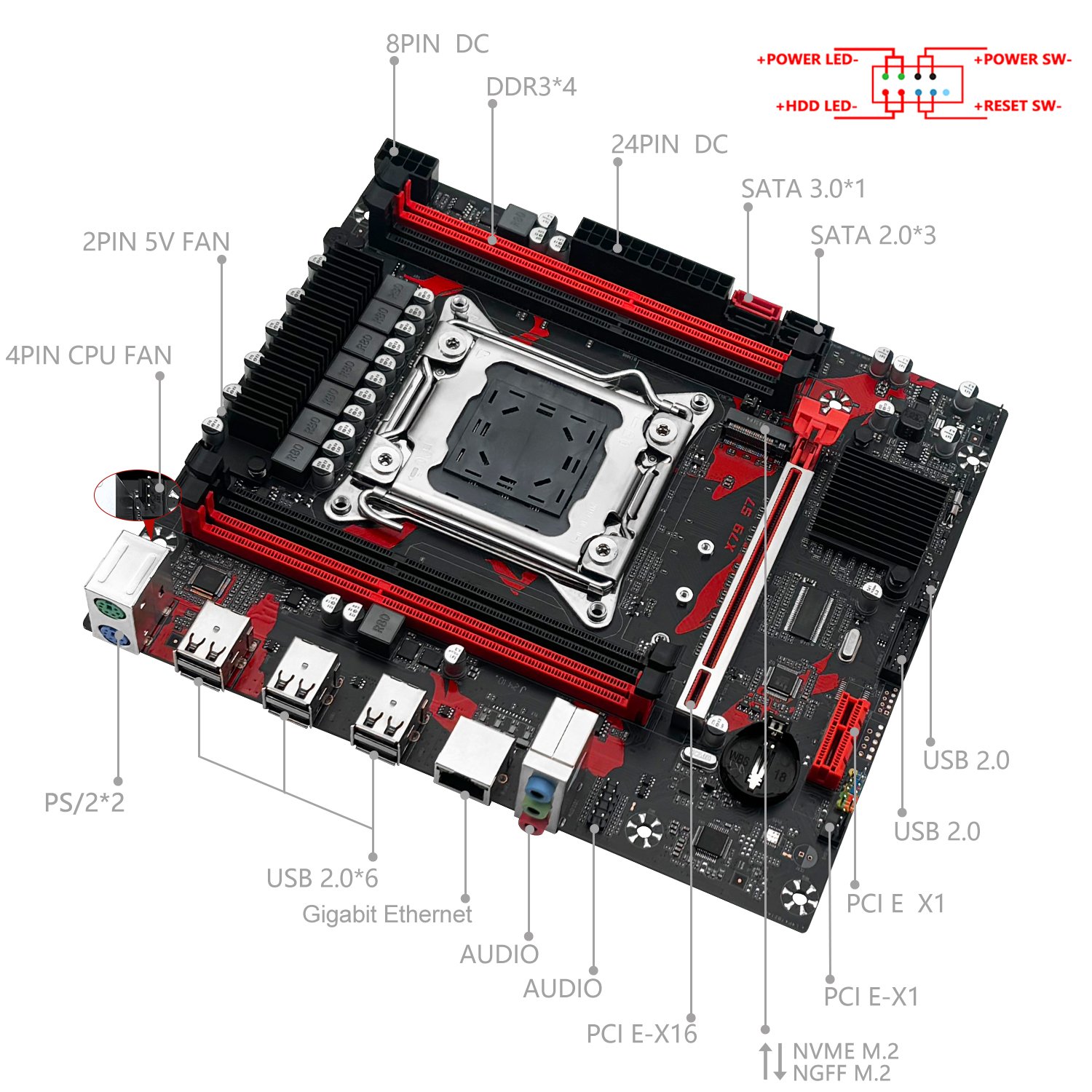

>>Internal connector

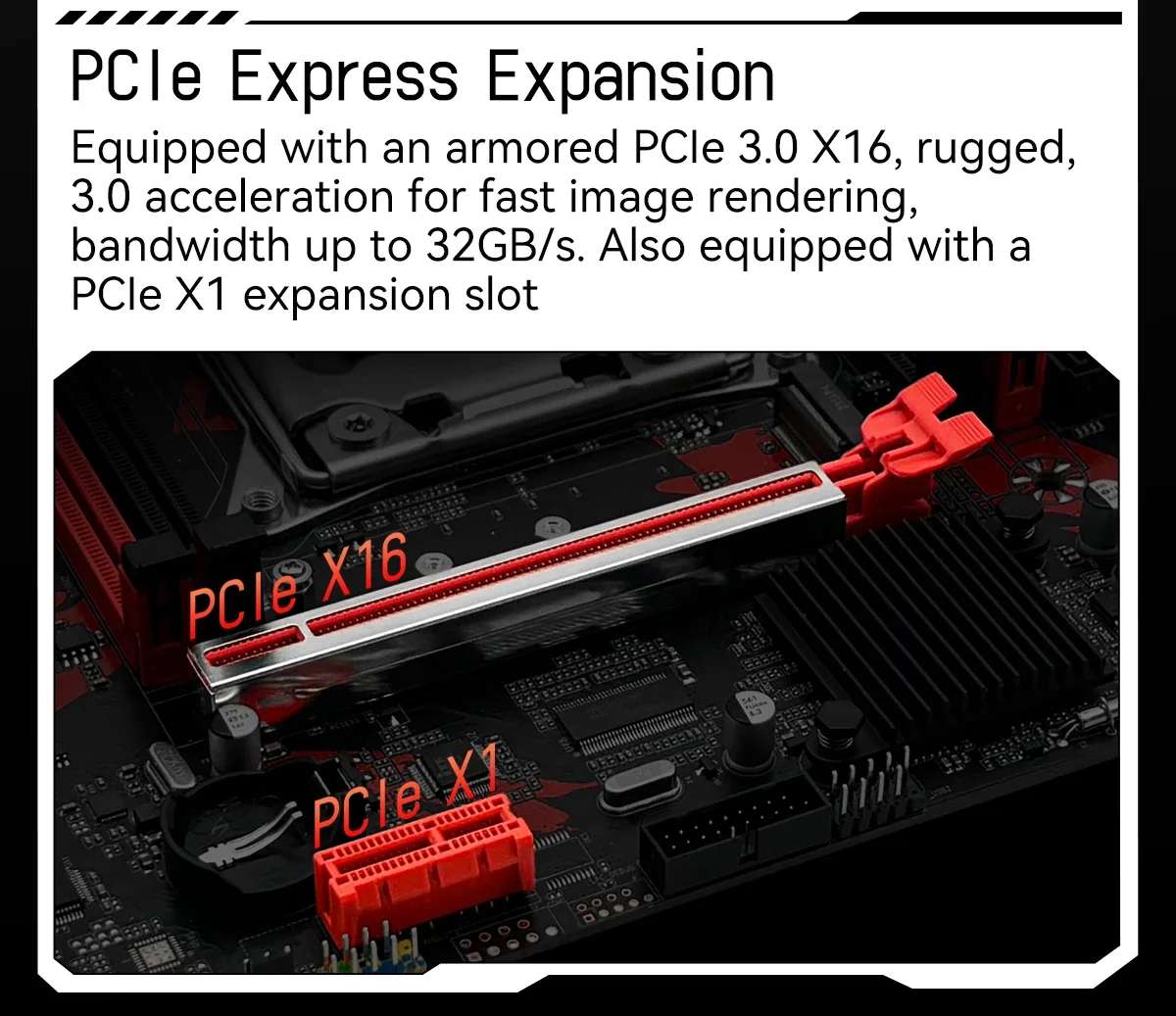

PCIe: 1 PCIe 16x, 1 PCIe 1x.

SATA ports: 4 (3 SATA2.0; 1 SATA3.0);

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket;

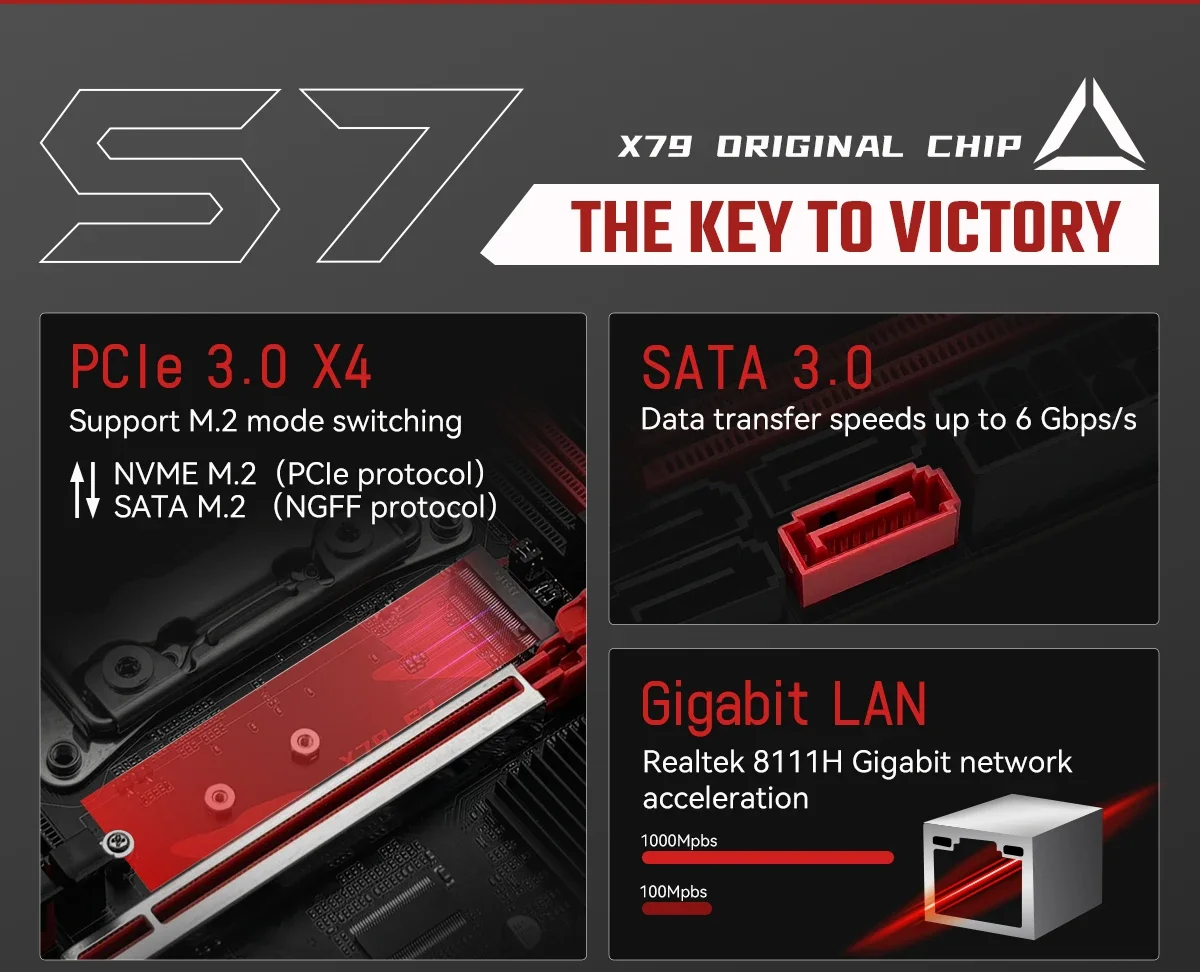

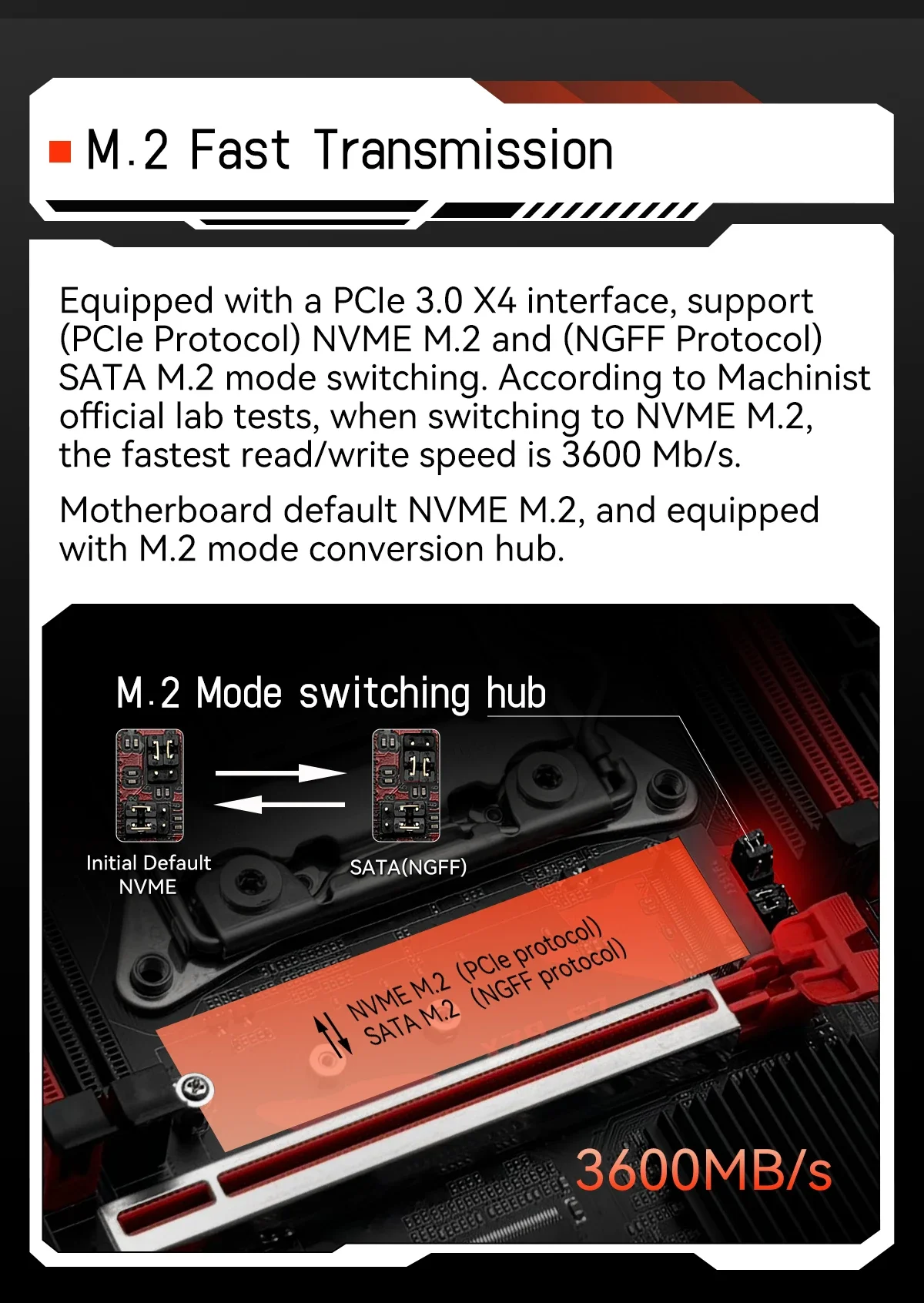

M.2 interface: 1 (SATA/NVME, default nvme)

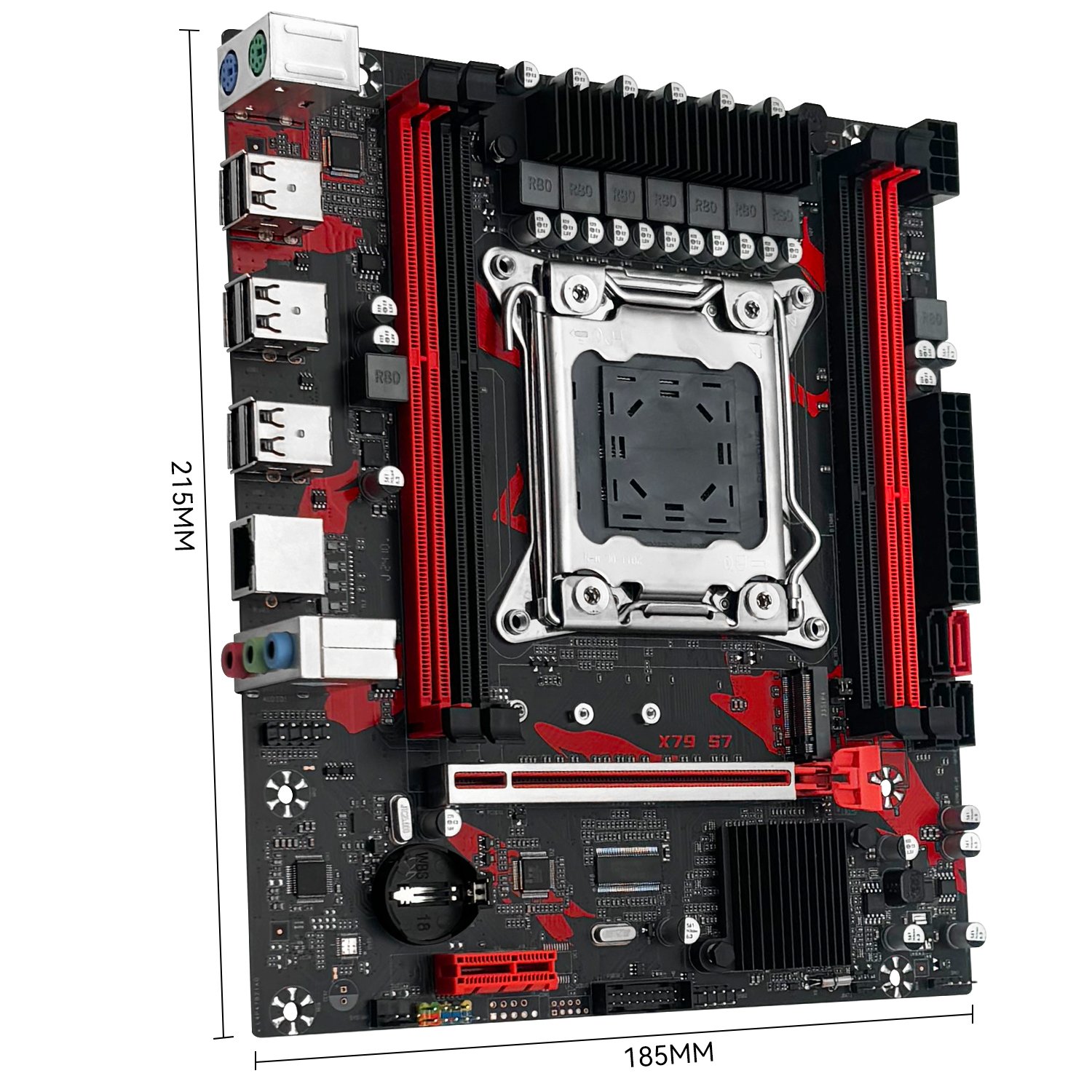

Overall dimensions: 215mm * 185mm.

Motherboard weight (including packaging): about 0.9 kg.

>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.

Notice:

(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1-3mm.

(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.

(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)

(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
