Preço de venda:
R$ 328,97
Preço original:
R$ 328,97
SPECIFICATIONS
Application: Desktop
Audio Channels: 2.1

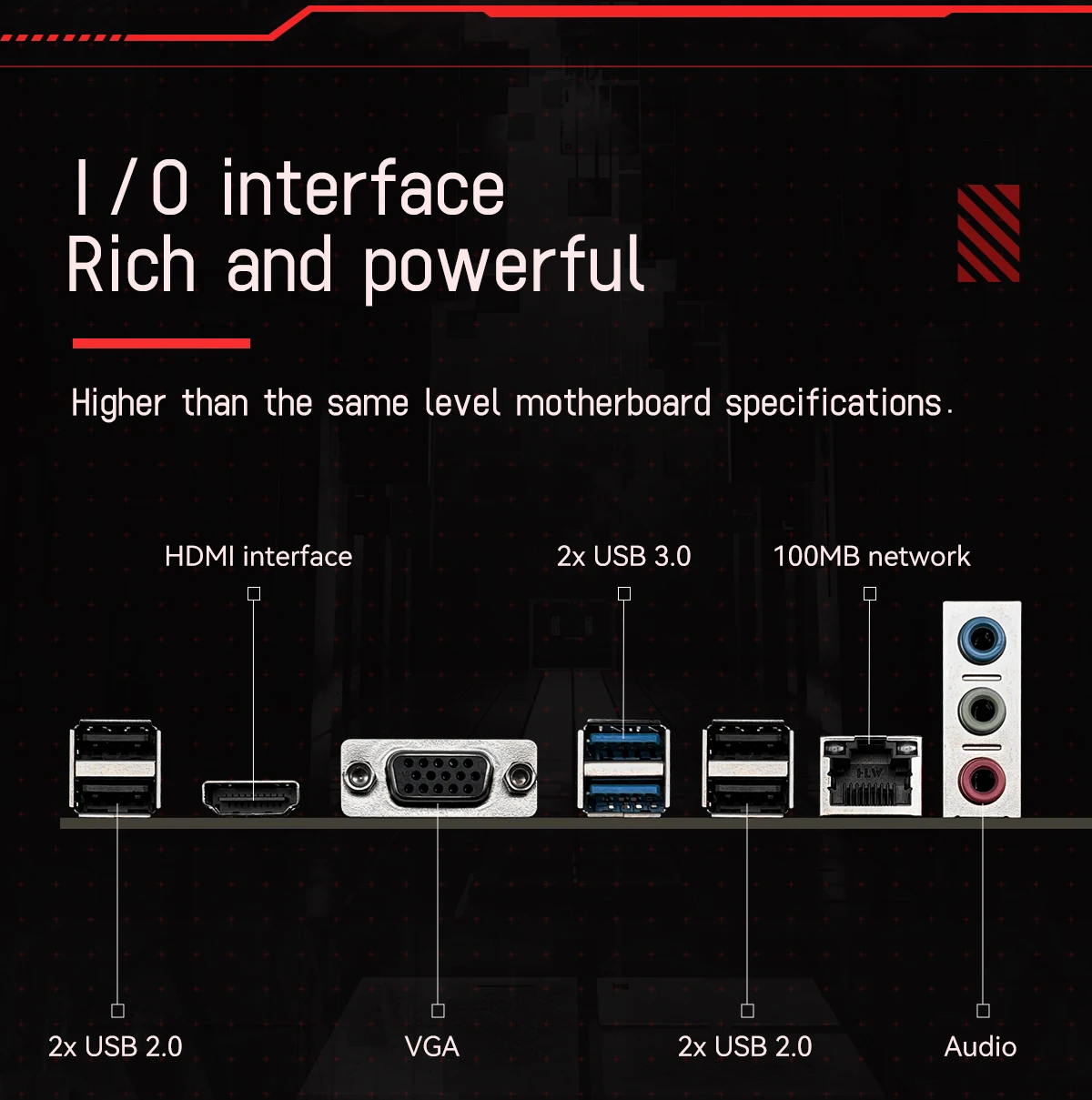

Back I/O Ports: 1x RJ45
Battery Included: No
Brand Name: MACHINIST
Certification: RoHS,CE
Chipset: Intel Others
Chipset Manufacturer: Intel
Choice: yes
Form Factor: CeB,Mini-ITX
High-concerned chemical: None
MACHINIST Model: B75 LGA 1155
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 128 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 1
Number of PCI: 1
Number of PCIe x 1: 0
Number of PCIe x 16: 1
Number of PCIe x 4: 0
Number of PCIe x 8: 0
Number of SATA Ports: 2
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s)
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: HDMI
Processor compatibility: Intel Core i3,Intel Core i7
Quality Certification: ce,ROHS
RAID Supported: No
Socket Type: LGA 1155
Special Features: RGB
Storage Interface Type: SATA,M.2 (NVMe)
Support Memory Type: DDR3
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Office,Video Production,others
With CPU: No

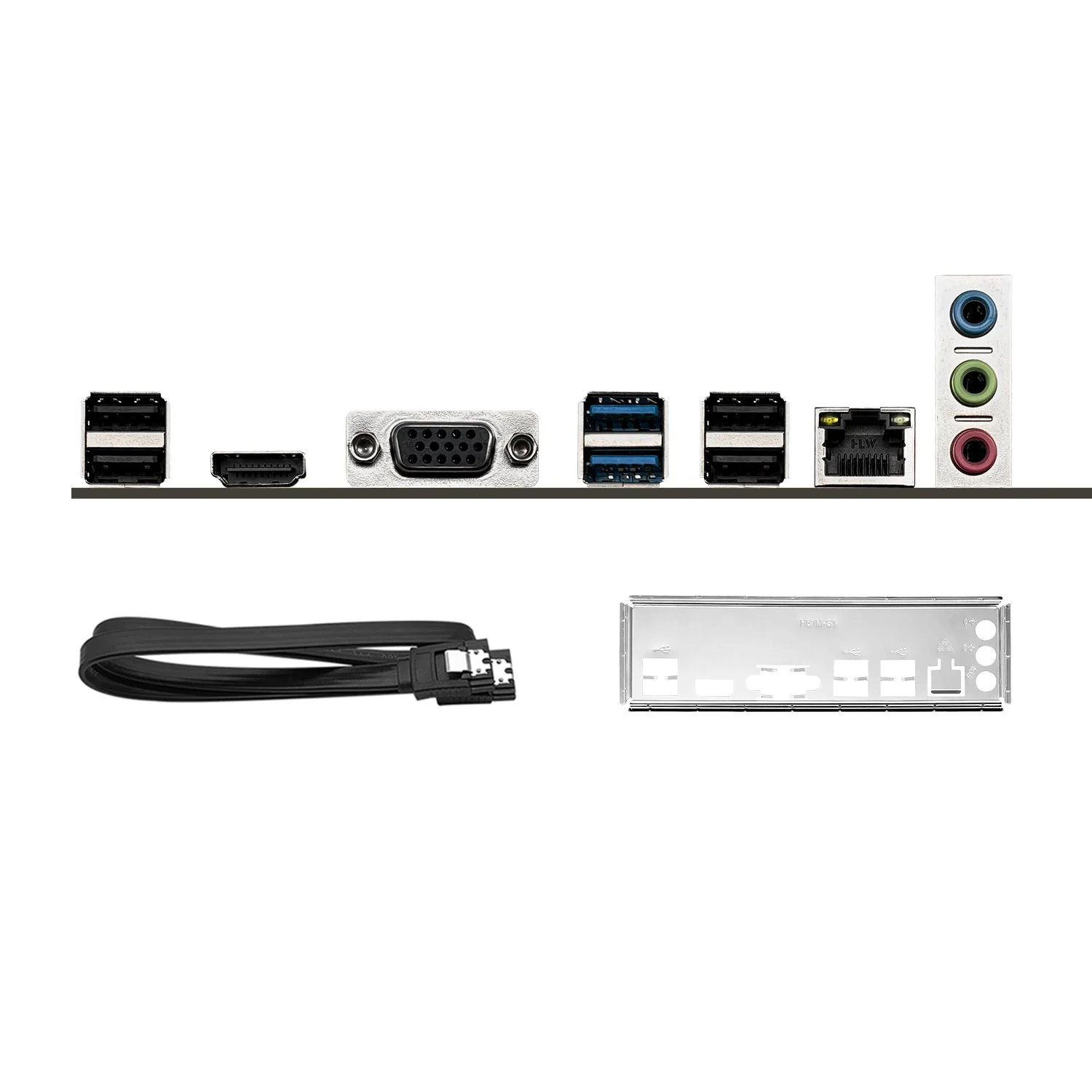

Package Contents: B75 X7 VB Motherboard *1
I/O shield *1
SATA cable *1

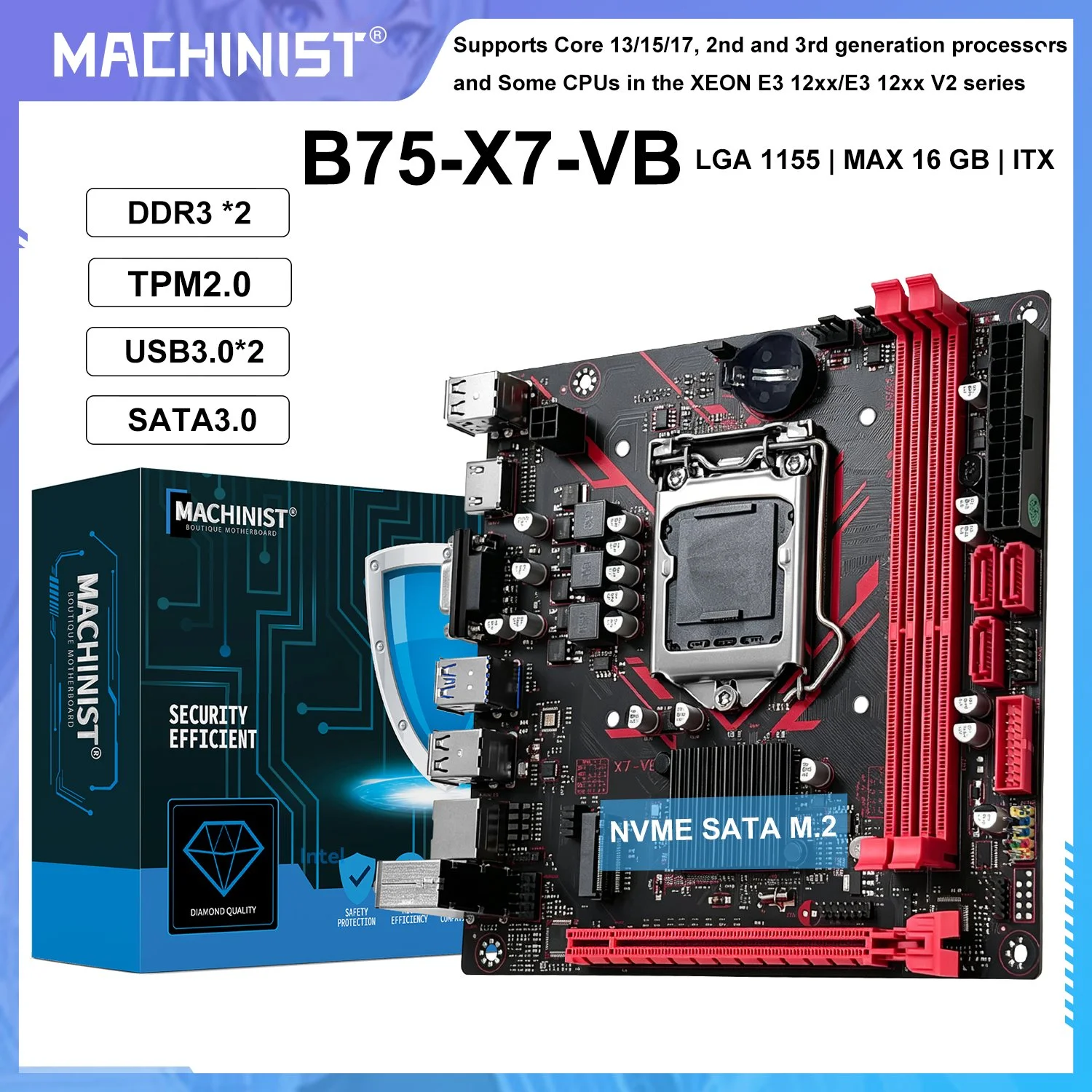

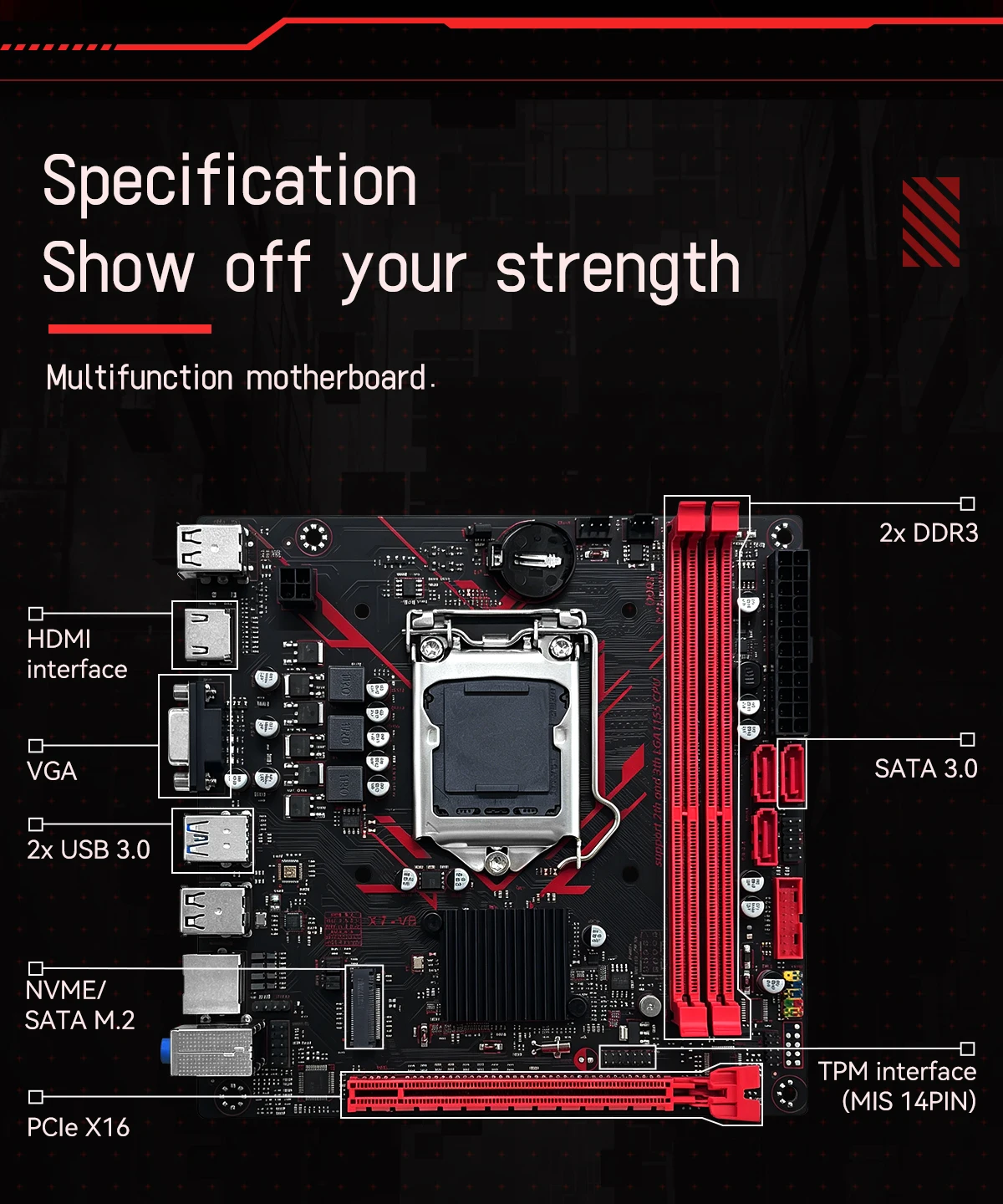

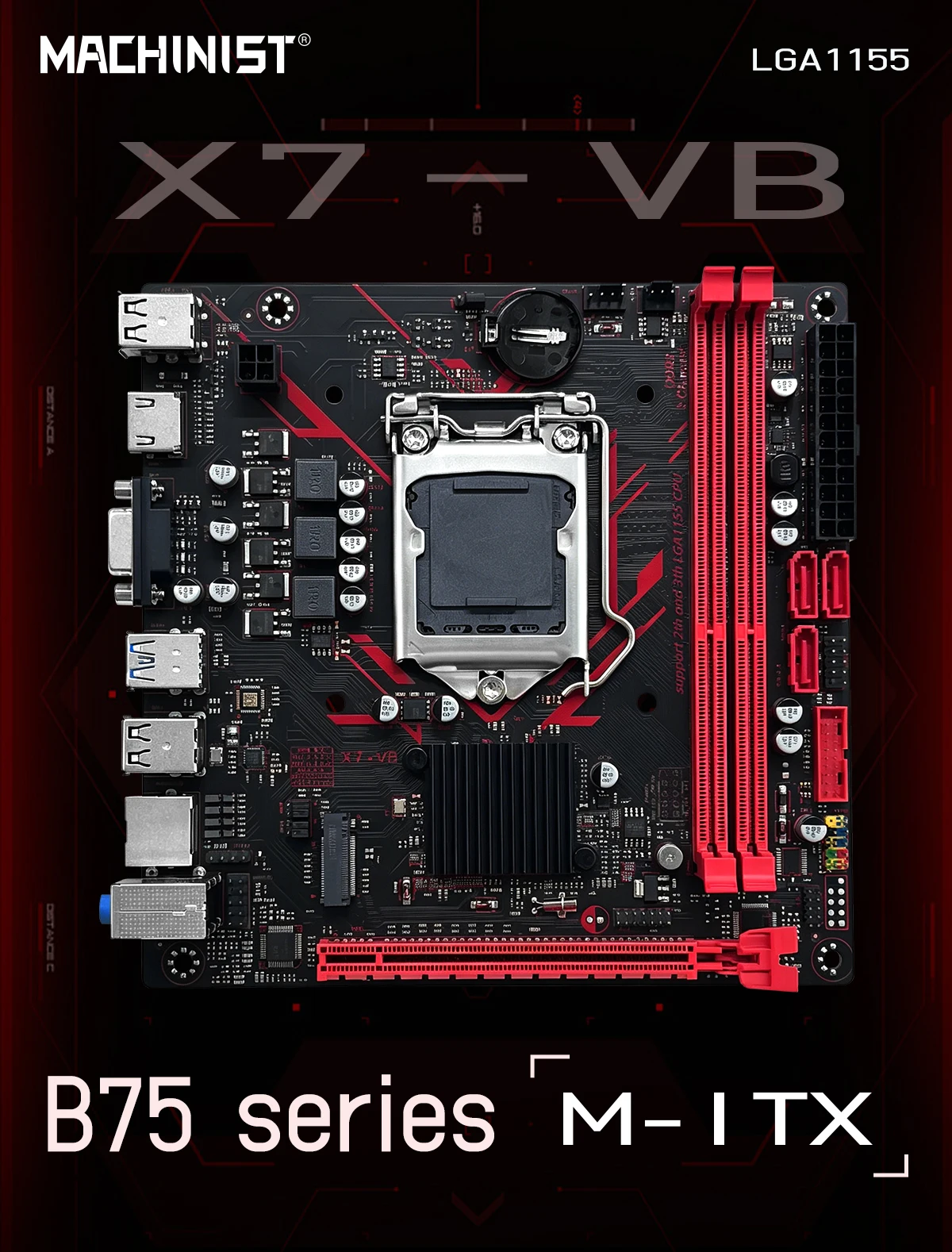

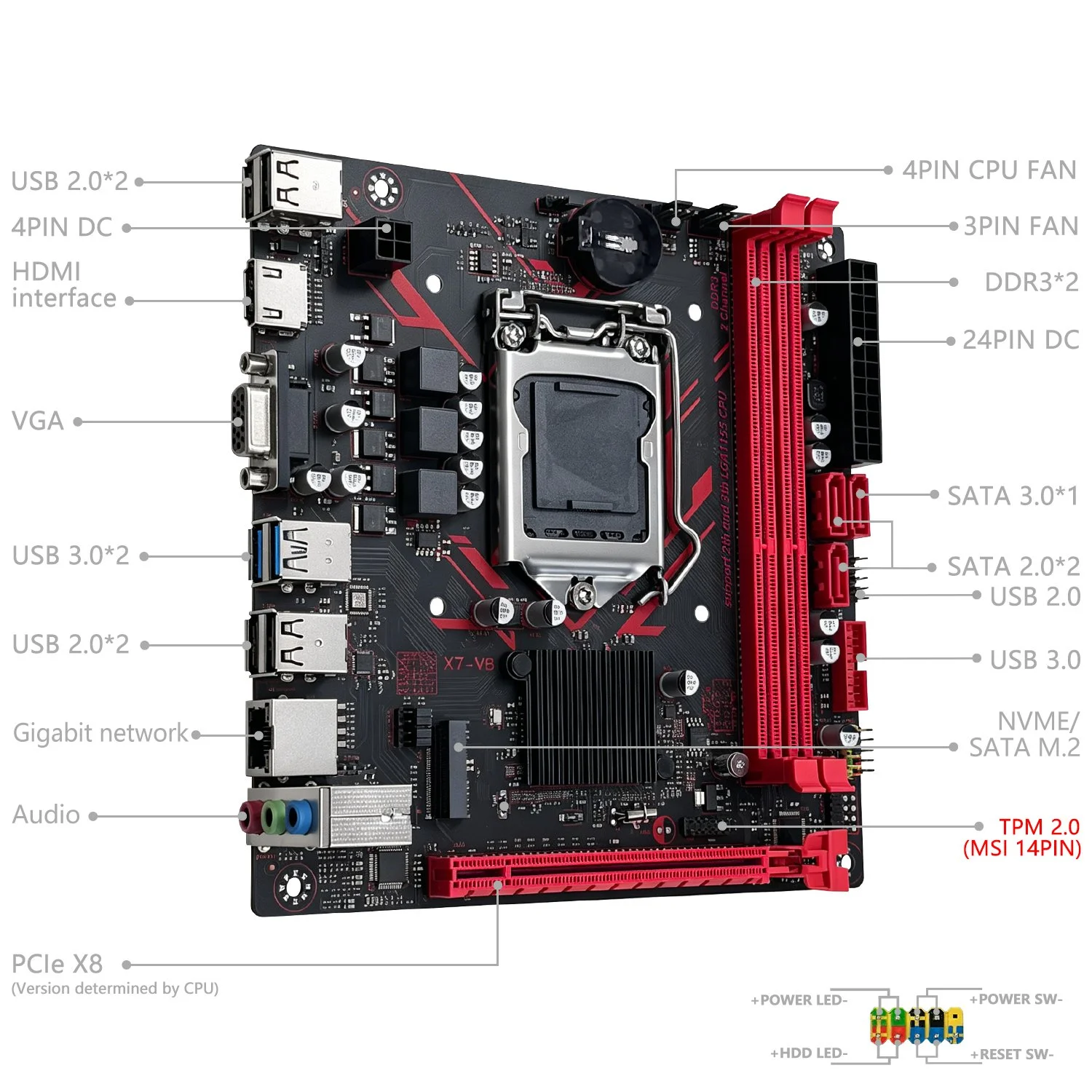

Motherboard Specifications:
Brand: MACHINIST

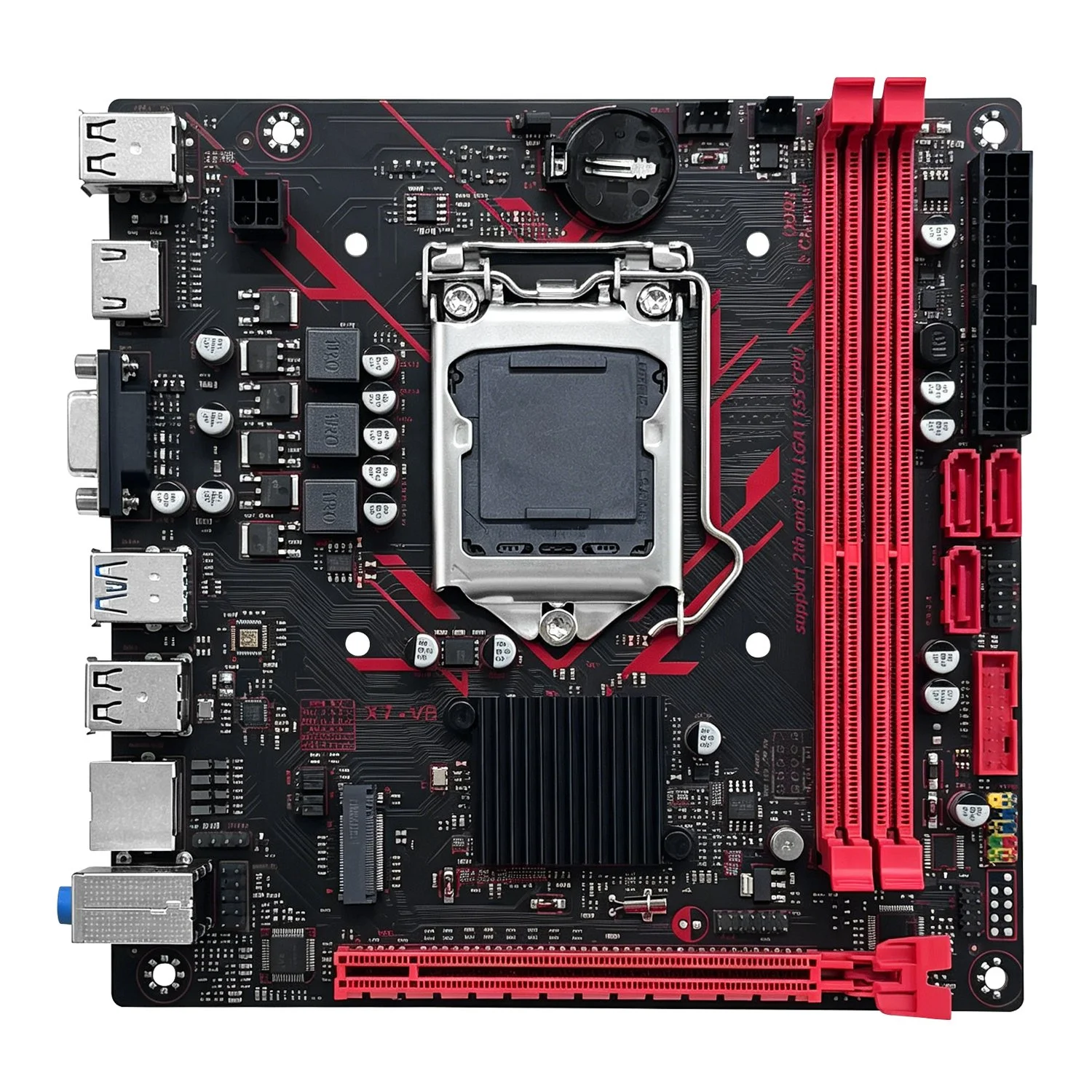

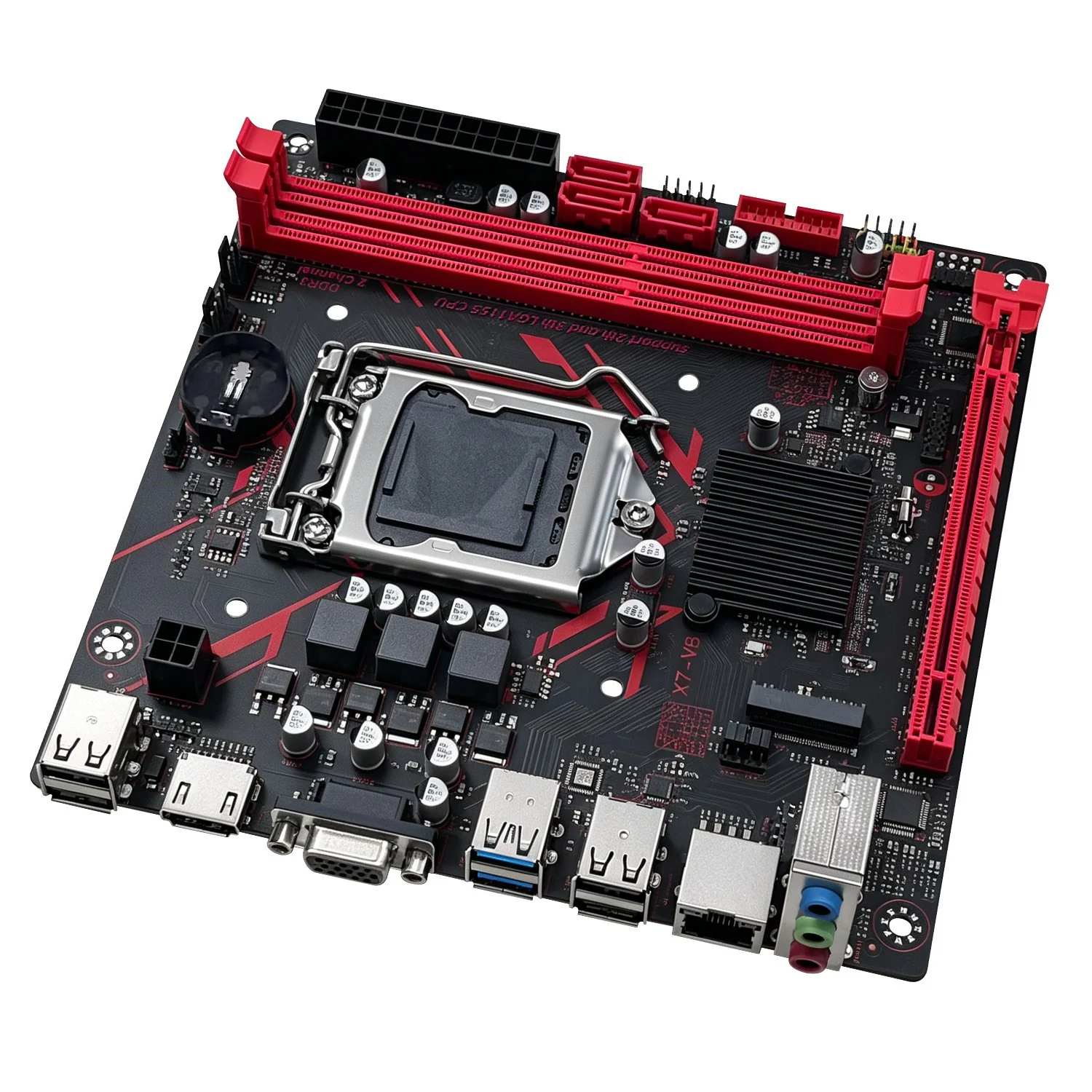

Model: B75 X7 VB
Chipset: Intel Q77 (not fixed, 7 series chipset, compared to H61, mainly adds USB 3.0 and SATA 3.0)
Supported CPUs: Intel LGA1155 socket, Core 2nd-3rd generation, Xeon E3-1200 series

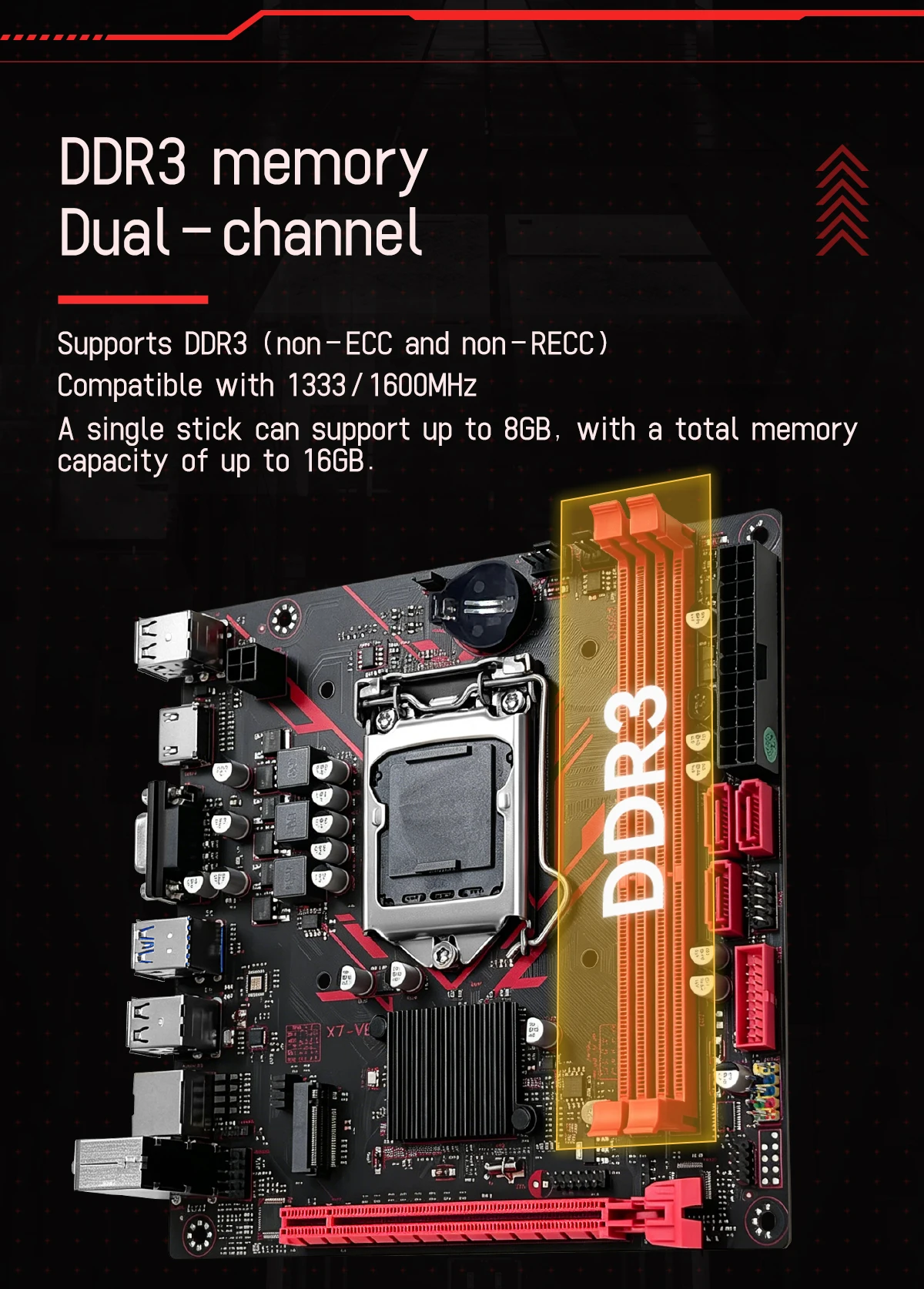

Supported Memory: Desktop DDR3, dual channel, 1333/1600 frequency, maximum supported capacity 8GB*2=16GB

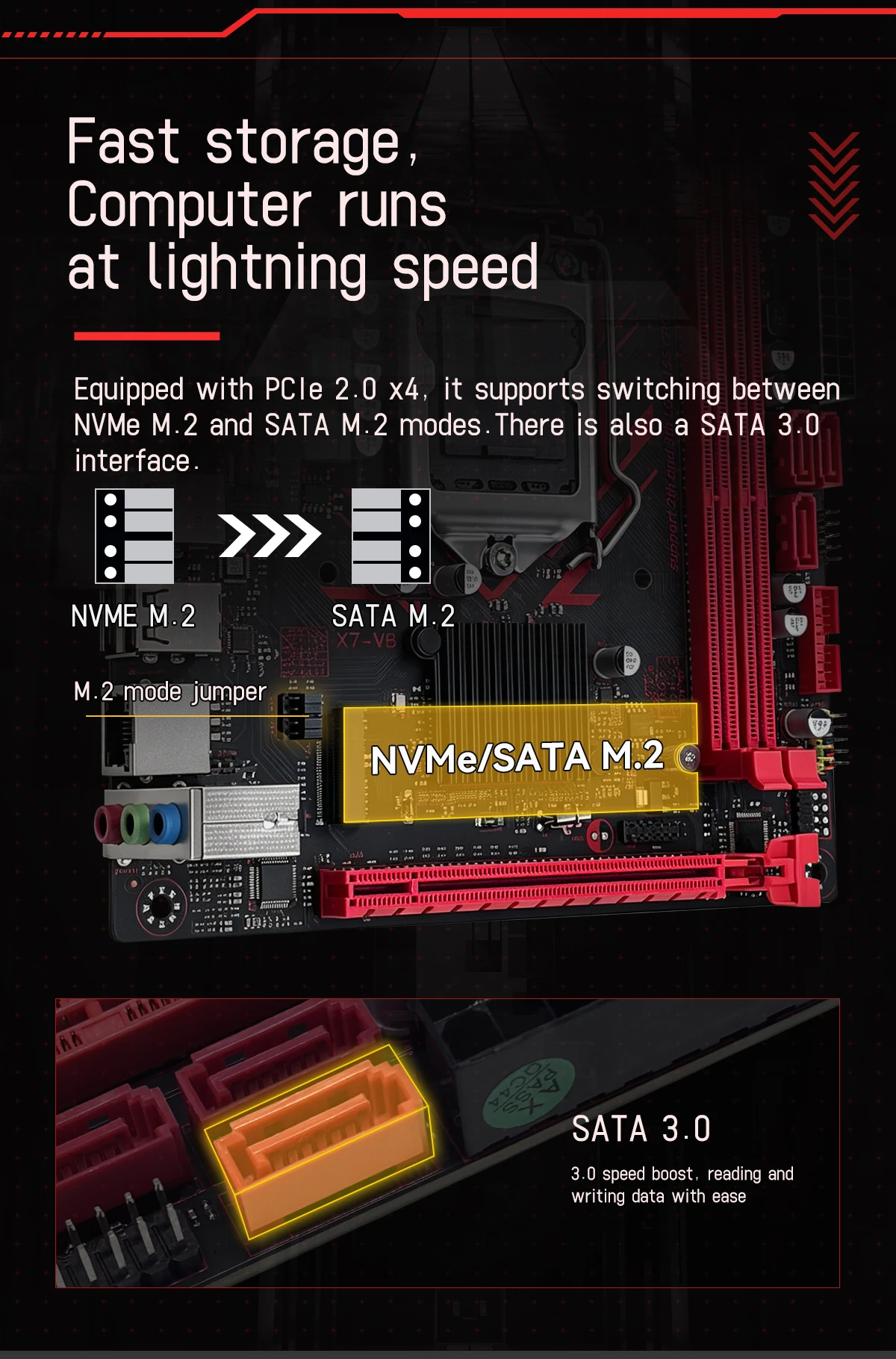

Supported Hard Drives: SATA 2.0*2 (theoretical speed 300MB/s), SATA 3.0*1 (theoretical speed 600MB/s), NVMe M.2*1 (PCIe 0.0x4 specification, theoretical speed 1600MB/s), NGFF M.2 (switchable via jumper cap, theoretical speed 300M/S)
Sound Card Model: Realtek ALC887 High-Fidelity Sound Card

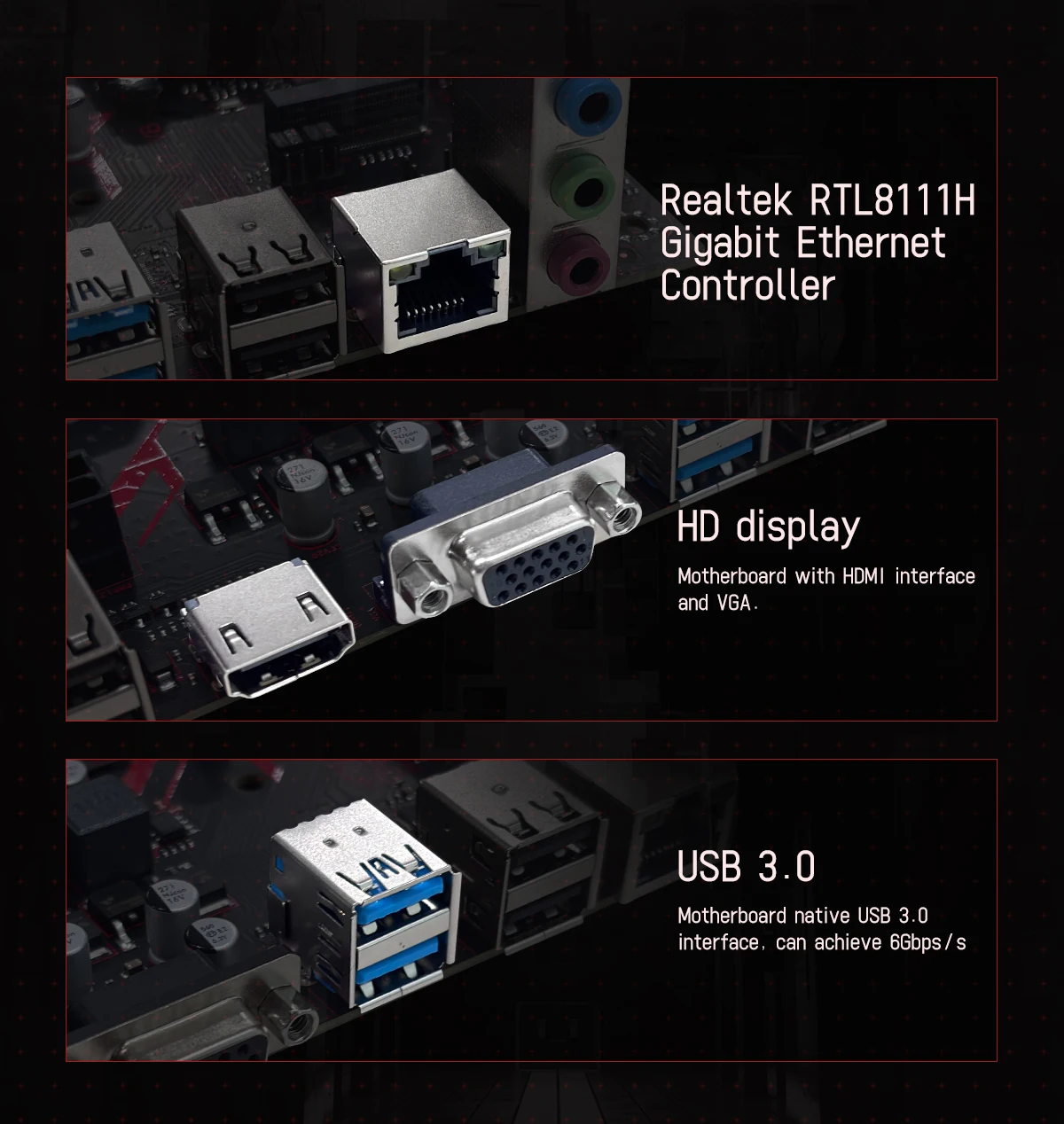

Network Card Model: Realtek 8111H Gigabit Ethernet Adapter

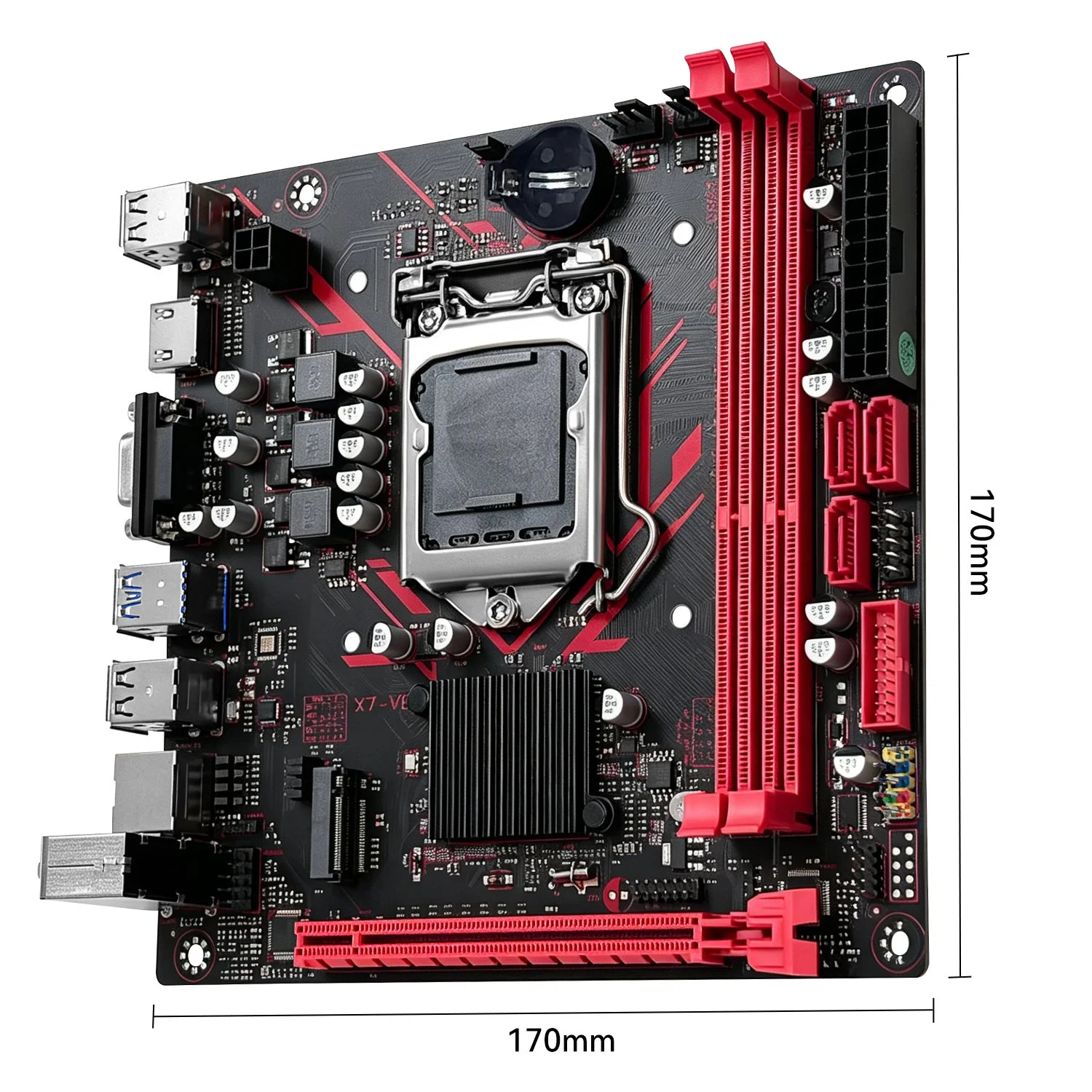

Dimensions: ITX, 17*17 cm
Weight (excluding packaging): 0.55kg
BIOS Boot Shortcut Key: F11
How to enter BIOS: Press the power button and then repeatedly press the DEL key (pressing the DEL key on the numeric keypad will not work)
Supports Secure Boot and TPM
